نام محصول:
پمپ دوغاب
نام انگلیسی:
Slurry pump Furon® A2
برند:
Saint-Gobain Performance Plastics – Process System
مشخصات:

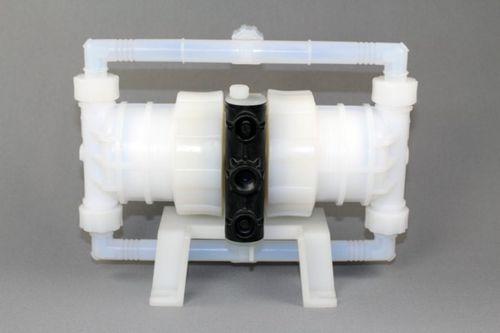

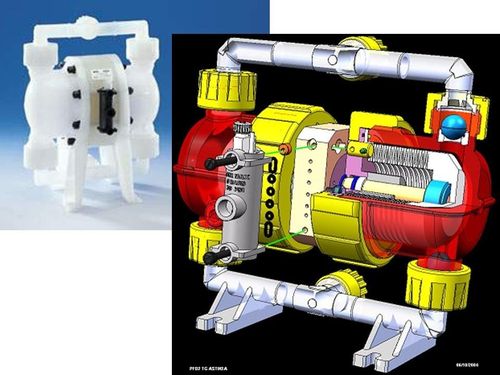

Furon A2 Pumps from Saint-Gobain feature a 100% PFA and PTFE wetted flow path which contain no metal parts or elastomeric seals, assuring compatibility with even the most aggressive chemicals. These high-purity pumps have pumping rates ranging from 4 GPM to 16 GPM. For abrasive slurries, special configurations are available to assure reliability in the most demanding pumping conditions. Slurry pumps feature specially designed bellows to prevent particle agglomeration and premature failure.
No metal parts
100% high purity PFA and PTFE wetted flow path
100% elastomer free
Worldwide service center for preventive maintenance
Unique recirculating pilot air concept to improve system uptime
Stall-proof twin shuttle option available
Low pulsation level with the use of Furon A2 Dampener technology
Furon A2 Pumps have been tested for more than 130 million cycles
توضیحات:
Fluid
for chemicals, slurry
Priming
self-priming
Technology
bellows
Mobility
stationary
Domain
industrial
Applications
transfer, handling, metering, high-purity
Material
PTFE, metal, PFA
Protection level
ATEX
Flow
Max.: 16 us gal/min(60.56659 l/min)Min.: 4 us gal/min(15.14165 l/min)
Pressure
5.5 bar, 6 bar(79.771 psi, 87.023 psi)
Head
Max.: 4 m(13’01” )Min.: 3.05 m(10’00” )
Fluid temperature
100 °C(212 °F)
Weight
2.26 kg, 4.08 kg, 7.25 kg(4.98 lb, 8.99 lb, 15.98 lb)
