نام محصول:
پمپ دوغاب
نام انگلیسی:

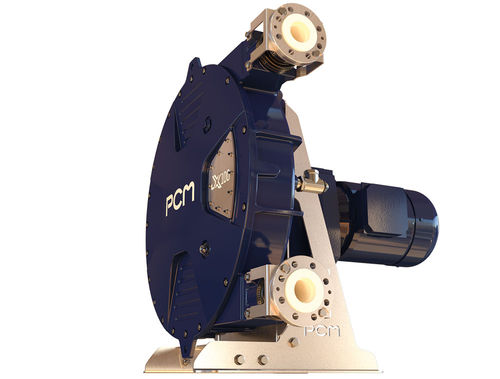

Slurry pump PCM Delasco™ DX
برند:
PCM
مشخصات:
Saving water has become paramount in industrial processes. Scarcity and costs trigger the need to convey ever more concentrated fluids.
PCM Peristaltic Delasco™ DX series can transfer highly concentrated fluids eliminating the need to add water to enable pumping. This allows for greater water and associated cost savings by minimizing infrastructures and reducing filtration costs. The PCM Delasco™ DX pump, thanks to their different constructions and the variety of their elastomer hoses, cover a wide range of applications requiring versatility and flexibility of use.
By nature peristaltic pumps are easy to maintain thanks to their seal-less construction, and as the only wetted part is the hose. PCM substantially improved the technology with an optimized hose lifetime, a smart quick release system which eases the hose change and the internal bearing to cut drive related maintenance. To provide robust and durable efficiency, PCM Delasco™ DX has been designed to sustain both internal and external wear factors, whether they are chemical or mechanical
Benefits
One pump for all fluids
Ideal for abrasive and high solids content slurries (up to 80%), high density, corrosive, shear sensitive, viscous, multiphase, gaseous and crystalizing fluids pumping
Optimised OPEX for tough applications
Only one wearing part: the hose
Easy on-site maintenance and short downtimes thanks to a unique hose quick release allowing hose change in only a few minutes
Seal-less design: no expensive sealing to replace and no associated seal-water flushing costs
Low energy requirements thanks to the inherent low running speed
Versatility
One pump for all tasks : transfer, dosing, emptying
Self-priming
توضیحات:
Fluid
for wastewater, for chemicals, slurry, oil, for biogas
Operation
electric
Priming
self-priming
Technology
peristaltic
Mobility
stationary
Domain
industrial, for the chemical industry, for wastewater treatment, agriculture, for the mining industry, for methanizers
Applications
circulation, transfer, discharge, process, dosing, sewage, treatment, feed, filling, for industrial applications, suction, chemical process, for cleaners
Material
stainless steel, cast iron, steel
Fluid specification
for abrasive fluids, for solids-laden fluids, for corrosive fluids, for viscous fluids, for used oil
Protection level
chemical-resistant, abrasion-resistant, standard, explosion-proof, high-strength, corrosion-resistant, rugged, ATEX, robust
Other characteristics
suction, dry, seal-less, multiphase
Flow
Min.: 0.16 m³/h(5.65035 ft³/h)Max.: 98 m³/h(3,460.83734 ft³/h)
Pressure
Min.: 7.5 bar(108.778 psi)Max.: 15 bar(217.557 psi)
Power
Min.: 0.75 kW(1.02 hp)Max.: 30 kW(40.79 hp)
Fluid temperature
Min.: -20 °C(-4 °F)Max.: 110 °C(230 °F)
