نام محصول:
پمپ دوغاب
نام انگلیسی:

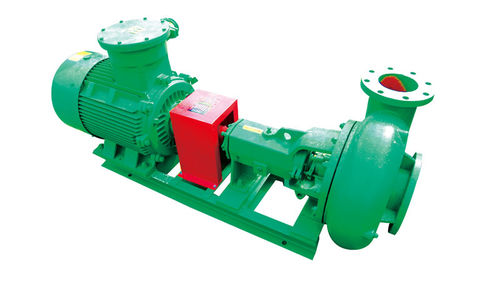

Slurry pump GNSB series
برند:
GN Solids Control
مشخصات:
Centrifugal pump for drilling mud system,oilfield and HDD drilling fluids centrifugal pump China manufacturer.GN supply centrifugal pump for solids control system.
GNSB Series Centrifugal pump is used for transferring slurry or mud or water. It can be used as feeding pump for desander, desilter, or used as mixing pump for Jet Mud Mixer. Also it can be used as trip pump, and supercharging pump for rig mud pump. All GN model centrifugal pump use tungsten carbide mechanical seal, with famous brand Bearing. And spare parts interchangeable with most of the international Brand pump which helps customer to source spare parts easily. Open impeller design that lowers axial thrust loads, and make it easier for installation, repair and maintenance.
توضیحات:
Fluid
slurry
Operation
with electric motor
Priming
normal priming
Technology
centrifugal
Domain
industrial
Flow
Min.: 45 m³/h(1,589.16 ft³/h)Max.: 320 m³/h(11,300.69335 ft³/h)
Head
Min.: 25 m(82’00” )Max.: 35 m(114’09” )
Power
Min.: 11 kW(14.96 hp)Max.: 75 kW(101.97 hp)
