نام محصول:
پمپ دوغاب
نام انگلیسی:

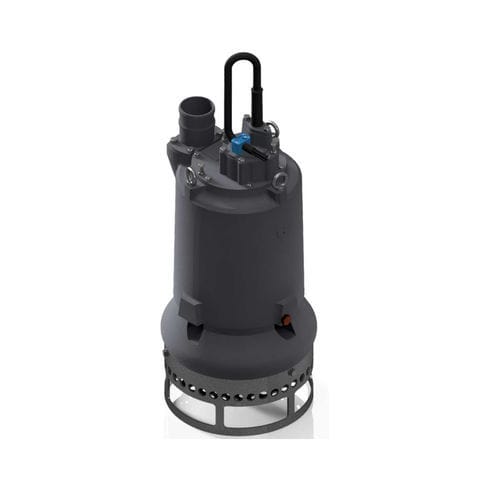

Slurry pump EL10 series
برند:
DRAGFLOW
مشخصات:
The EL10 is an electric pump with high abrasion resistance and can handle material concentrations up to 70%. It is the ideal solution for industrial, mining, and dredging applications in other fields, guaranteeing maximum efficiency and productivity.
Main characteristics
High efficiency agitator, reversible and high chrome for long life and continuous flow lifting of deposited sediments.
Low rotation speed: reduced wear and long term efficiency.
Rugged and heavy duty construction: highly resistant components for loaded and abrasive mixes.
توضیحات:
Fluid
slurry
Operation
electric
Priming
submersible
Technology
impeller
Mobility
stationary, mobile
Domain
industrial
Applications
dredging, lifting
Fluid specification
for abrasive fluids
Voltage
400 V, 460 V, 230 V
Other characteristics
flow, rugged
Flow
Min.: 0 m³/h(0 ft³/h)Max.: 150 m³/h(5,297.20001 ft³/h)
Head
Min.: 0 m(0’00” )Max.: 22 m(72’02” )
Power
Min.: 7.5 W(0.01 hp)Max.: 17 W(0.02 hp)
Fluid temperature
35 °C(95 °F)
Width
450 mm(17.72 in)
Height
1,035 mm(40.75 in)
Weight
280 kg, 290 kg(617.29 lb, 639.34 lb)
