نام محصول:
پمپ دوغاب
نام انگلیسی:
Slurry pump SP 20
برند:
DOA Hydraulic Tools Srl
مشخصات:
• Extremely robust and reliable
• Simplified construction that ensures reliability, long lasting life and minimal maintenance requirements
• Can run dry without damage
• The maximum cinrconference of only 22 cm allows easy insertion even in narrow manholes and very small excavation sites
• It can be operated by small power packs or by the hydraulic circuit of mini excavators, tractors, etc • Hydraulic motor equipped with a one-way valve that prevents accidental oil leaks if connected in the wrong hydraulic port
• Available with “Viton” seals for pumping high temperature fluids

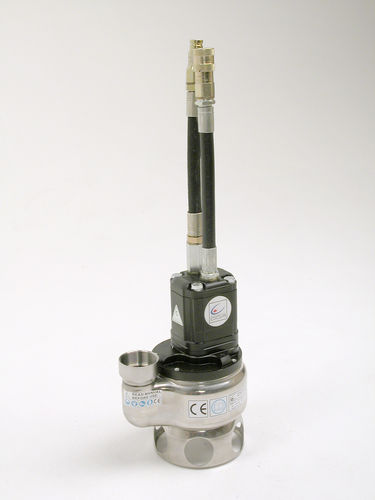

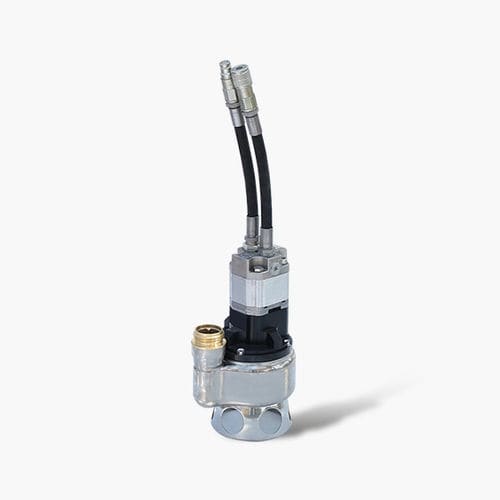

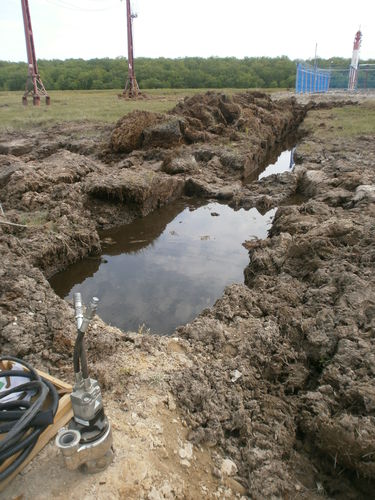

SP20 is a compact and powerful immersion pump designed for handling trash, muddy waters and for heavy fluids in general.Compact and light provides a flow rate up to 800 L/min and maximum water head of 35 meters. Can pump solid particles with dimensions up to 3 cm. It can run dry without damage. Compact and safe, the SP20 is ideal for emergency services, for the maintenance of urban gas and water networks, the field operators can work with their feet immersed in the same water in which the pump is operating.
توضیحات:
Fluid
water, slurry, oil
Operation
hydraulic motor
Priming
submersible
Technology
impeller
Mobility
stationary
Domain
industrial
Applications
handling, work
Fluid specification
for heavy fluids
Protection level
robust, immersion
Other characteristics
compact, small, flow, dry
Flow
Max.: 800 l/min(211.33764 us gal/min)Min.: 15 l/min(3.96258 us gal/min)
Pressure
Max.: 210 bar(3,045.792 psi)Min.: 100 bar(1,450.377 psi)
Head
10 m(32’09” )
Length
220 mm(9 in)
Height
300 mm(11.81 in)
Weight
8 kg(17.64 lb)
