نام محصول:
پمپ دوغاب
نام انگلیسی:

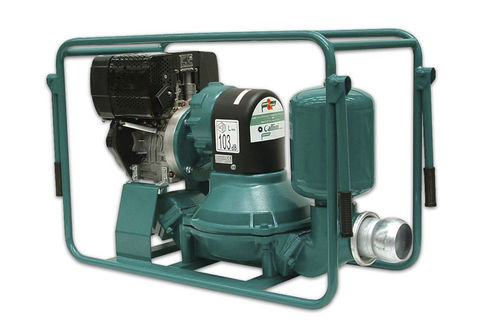

Slurry pump LIBELLULA 1 – 4″
برند:
Caffini Cipriano s.r.l.
مشخصات:
Dry-running capability.
Rapid dry self-priming up to a depth of 7 meters in a matter of seconds.
No seal or rotating part in contact with the pumped liquid.
Can be used where there are abrasive or acid fluids.
Wide passage for solid bodies (60 mm).
Flow rate proportional to number of diaphragm pulses.
Equipped with non-self-lubricated rigid connecting rod.
BUILDING MATERIALS
Parts in contact with liquid: aluminium, cast iron, Rilsan plastic coating, fluoropolymer coated, compliant to FDA rules.
Parts not in contact with liquid: aluminium/cast iron.
Diaphragms and valves: Neoprene, Dutral/Tpv Sarlink, Hypalon, Viton, Oil proof Tpv/nitrilic rubber, Non-Toxic rubber.
توضیحات:
Fluid
for industrial water, acid, slurry, oil
Operation
gasoline engine
Priming
self-priming
Technology
diaphragm
Mobility
stationary, mobile
Domain
industrial, for the construction industry
Applications
transfer, discharge, drainage, treatment, for low-pressure applications, for meat
Material
cast iron, aluminum
Fluid specification
for aggressive media, for abrasive fluids, for corrosive fluids, for solids-laden fluids, for viscous fluids, for used oil
Voltage
400 V, 230 V
Protection level
chemical-resistant, abrasion-resistant, maintenance-free, corrosion-resistant, oil-resistant, IP55
Other characteristics
lubricated, dry, coated
Flow
Max.: 30 m³/h(1,059.44 ft³/h)Min.: 0 m³/h(0 ft³/h)
Head
Max.: 15 m(49’02” )
Input diameter
Max.: 100 mm(3.937 in)
Output diameter
Max.: 100 mm(3.937 in)
