نام محصول:
پمپ دوغاب
نام انگلیسی:

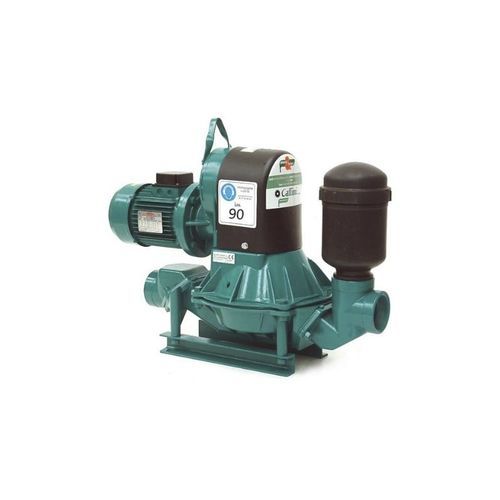

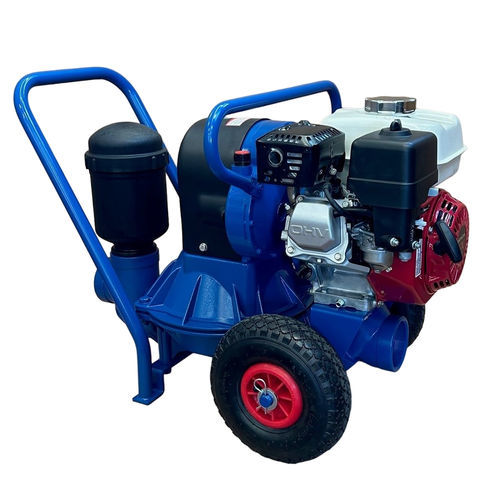

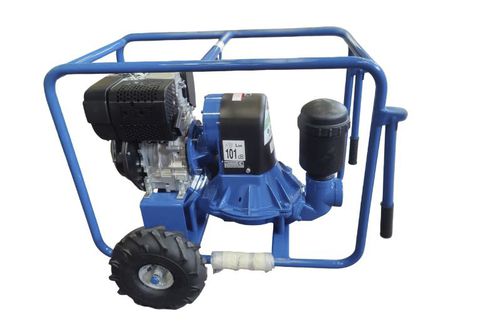

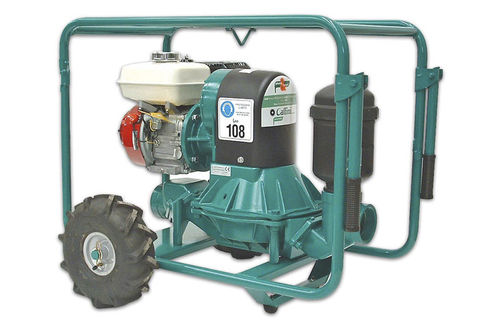

Slurry pump LIBELLULA 1 – 3″
برند:
Caffini Cipriano s.r.l.
مشخصات:
Dry-running capability.
Rapid dry self-priming up to a depth of 7 meters in a matter of seconds.
No seal or rotating part in contact with the pumped liquid.
Can be used where there are abrasive or acid fluids.
Wide passage for solid bodies (50 mm).
Flow rate proportional to number of diaphragm pulses.
Very simple, occasional maintenance.
Helical gearbox.
Rigid self-lubricated connecting rod or with spring (on demand).

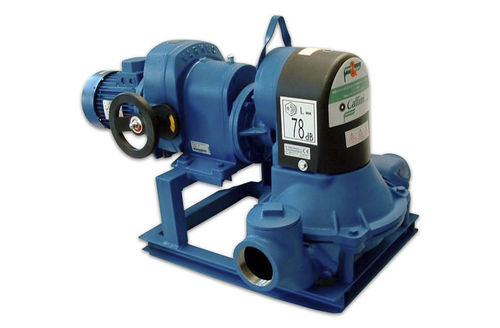

The industrial version is supplied with helical gearbox that is quieter and is characterized by its robustness.
BUILDING MATERIALS
Parts in contact with liquid: aluminium, cast iron, AISI 316 stainless steel, Rilsan plastic coating, fluoropolymer coated, compliant to FDA rules.
Parts not in contact with liquid: cast iron.
Diaphragms and valves: Neoprene, Dutral/Tpv Sarlink, Hypalon, Viton, Oil proof Tpv/nitrilic rubber, Non-Toxic rubber.
توضیحات:
Fluid
for wastewater, for industrial water, acid, slurry, oil
Operation
gasoline engine
Priming
self-priming
Technology
diaphragm
Mobility
stationary, mobile
Domain
industrial, for the construction industry
Applications
for transfer, discharge, drainage, treatment, for low-pressure applications, for water-jet cutting, for meat
Material
stainless steel, cast iron, aluminum
Fluid specification
for aggressive media, for abrasive fluids, for corrosive fluids, for solids-laden fluids, cutting fluid, for used oil
Voltage
400 V, 230 V
Protection level
wear-resistant, maintenance-free, corrosion-resistant, oil-resistant, IP55
Other characteristics
spring, lubricated, dry, coated
Flow
Max.: 20 m³/h(706.29333 ft³/h)Min.: 0 m³/h(0 ft³/h)
Head
Max.: 15 m(49’02” )
Input diameter
Max.: 80 mm(3.15 in)
Output diameter
Max.: 80 mm(3.15 in)
