نام محصول:
پمپ دوغاب
نام انگلیسی:

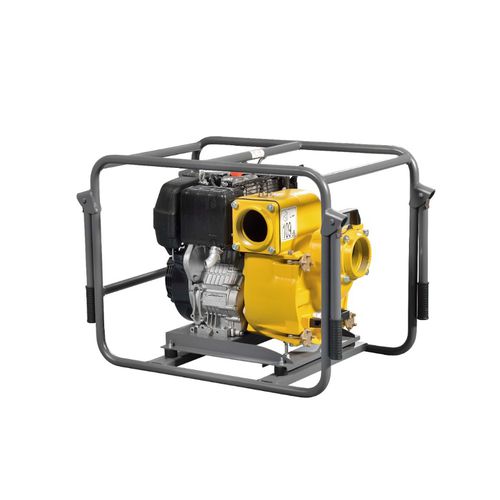

Slurry pump LB 80B LB
برند:
Atlas Copco Construction Tools
مشخصات:
A complete range of small portable pumps
To enable maximum versatility and to make a pump that fits with your needs, we offer a choice of gasoline, diesel or electric power. We have 3 types to match your requirements.
Diaphragm self-priming portable pumps
These small portable pumps are made for tough applications and excels when it comes to pumping sludgy water or water with large solids. Despite its extreme ruggedness, these pumps maintains the extreme portability you have come to expect from our small pump range. – Recirculation of bentonite and drilling mud – Sludge removal – Pumping sewage or other liquids containing fibrous material – Pumping cutting or dressing water circulation in stone industries – Cleaning manholes
Centrifugal self-priming gasoline portable pumps
The JB series offers two models. Both are lightweight, highly portable, self-priming, gasoline driven pumps. The JB models are ideal for multiple applications, including emergency use, general construction and industrial dewatering. They are the perfect pump to keep on site or in your truck. They are designed to be operational and performing at a moment’s notice – ready to go, when you need them
Centrifugal self-priming portable pumps
The ETP series offers four models. All are lightweight, highly portable, self-priming pumps. We offer three models which are gasoline driven. The ETP 100D model is also available with diesel power. This range of versatile pumps can be used across many applications and are great for emergency use and non-planned events
The balance of portability and power means you can easily transport them to your application site. The rugged, high performance features ensure performance
توضیحات:
Fluid
water, slurry, gasoline
Operation
diesel
Priming
self-priming
Technology
diaphragm
Mobility
mobile
Domain
industrial, for water treatment
Applications
circulation, sewage, cleaning, dewatering, transport, recirculation
Other characteristics
small, rugged
Flow
Max.: 2,500 l/min(660.43013 us gal/min)Min.: 0 l/min(0 us gal/min)
Head
Max.: 29 m(95’01” )Min.: 15 m(49’02” )
Power
Max.: 9.6 kW(13.05 hp)Min.: 2.1 kW(2.86 hp)
Length
950 mm, 1,100 mm(37 in, 43 in)
Width
735 mm, 745 mm(28.94 in, 29.33 in)
Height
800 mm, 885 mm(31.5 in, 34.84 in)
Weight
Max.: 137 kg(302.03 lb)Min.: 34 kg(74.96 lb)
