نام محصول:
پمپ دوز
نام انگلیسی:

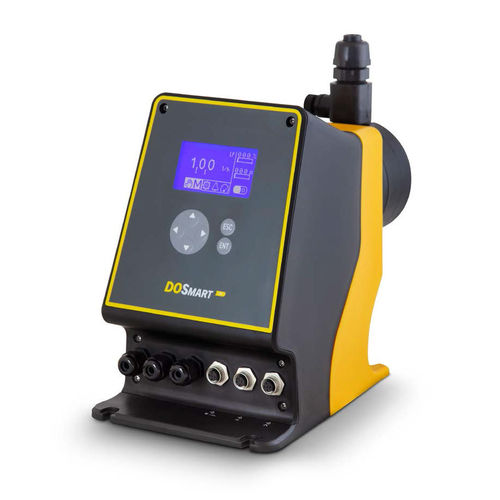

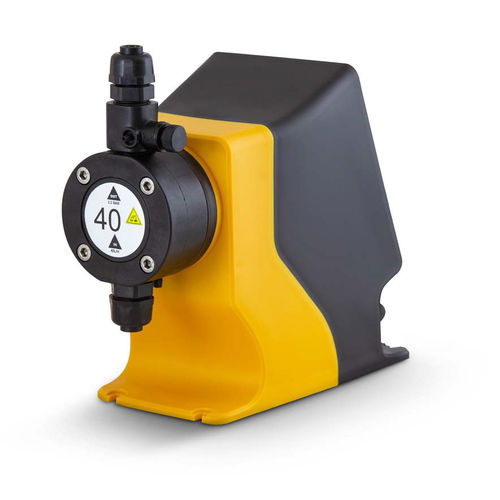

Dosing pump DOSmart AC
برند:
ITC
مشخصات:
DOSmart AC is a series of dosing pumps with a step motor and advanced control functions to automate precisely and efficiently the dosing of chemicals in liquid state.
This series of pumps is characterized by high precision, extensive regulation (1:3000) and high suction capacity even with viscous products. The flow range covers needs from 1.5 to 60 l/h at a pressure of up to 16 bar. The choice of the correct head material between PP, PVDF and stainless steel allows the dosing of any commonly used chemical in the water treatment, chemical, food and agriculture industries.

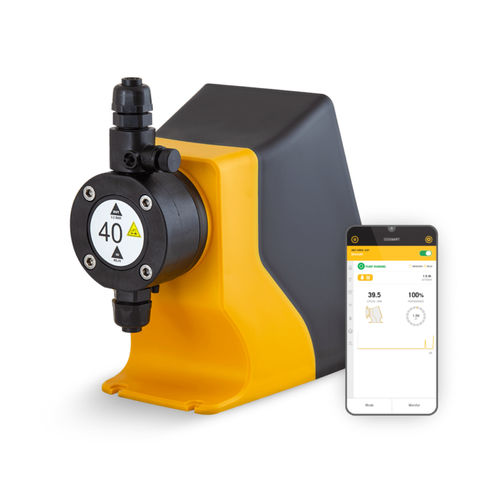

There is an APP available for DOSmart AC pumps which allows to monitor and control easily the unit remotely. The APP also has the option to receive alarm messages through SMS and email.
Highlights:
– High suction capacity
– Flow calibration
– Analog control (0/4-20mA)
– Proportional pulse control
– Batch dosing control
– Manual Flow control
Advanced Dosing Functions:
– (ST) STANDARD: 100% Operation | 50% Operation
– (SS1) SLOW SUCTION: Slow suction cycle for a reliable dosing for high viscosity fluids
– (SS2) SLOW SUCTION AND DISCHARGE: Slow suction cycle for a reliable dosing for high viscosity fluids
توضیحات:
Fluid
for chemicals
Operation
stepper motor-driven
Technology
diaphragm
Mobility
stationary
Domain
industrial, for the chemical industry, for water treatment, for the food industry, agriculture, for the paper industry
Applications
dosing, high-precision
Material
stainless steel, PP, PVDF
Voltage
24 V, 144 V, 110 V, 115 V
Other characteristics
remote control
Flow
Max.: 60 l/h(15.85032 us gal/h)Min.: 1.5 l/h(0.39626 us gal/h)
Pressure
Max.: 16 bar(232.06 psi)Min.: 2 bar(29.008 psi)
Power
32 W(0.04 hp)
Length
296 mm(12 in)
Width
172 mm(6.77 in)
Height
267 mm(10.51 in)
Weight
4.5 kg(9.92 lb)
