نام محصول:
پمپ دوز
نام انگلیسی:

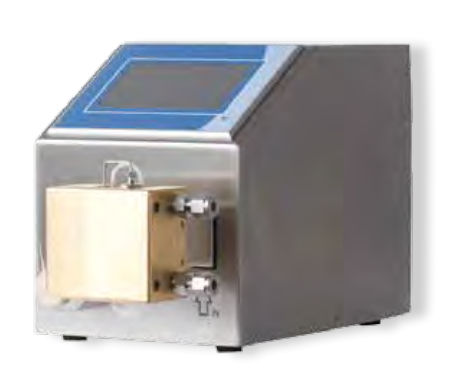

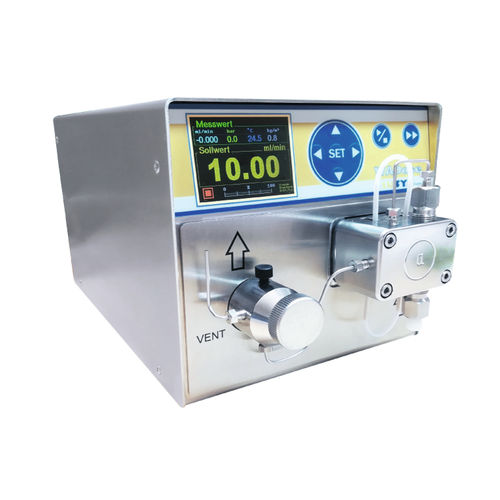

Dosing pump WADose series
برند:
FLUSYS GmbH
مشخصات:
For high pressures – Dosing small amounts accurately and in a controlled manner!

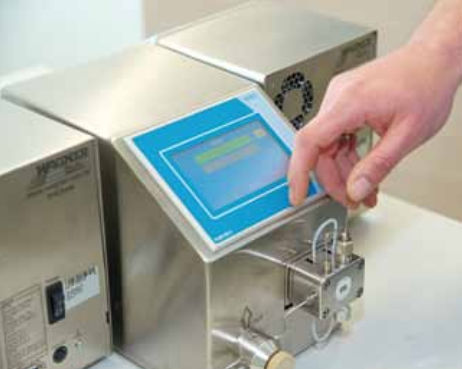

The WADose range are intelligent, accurate dosing pumps for dosing tasks with liquids in technical centres, laboratories, for testbeds and production. Their area of application is the dosing of very small amounts (µl to ml) in applications from atmospheric to 400 bar. The WADose LITE is operated via a user-friendly keypad with a clearly legible display.
The pumps can be integrated very easily into control systems. The low-pulsation dual-piston pump is controlled by an intelligent control system with a step motor that is accurate for very small step and dosage rates. The pressure ranges from atmospheric to 400 bar. With the intelligent, optional mass-flow interface for a mini CORI-FLOW® mass flowmeter, the actual flow rate is controlled and monitored. A built-in pressure sensor can be used for pressure monitoring. Pressure control with this built-in sensor is available on request.
Special features:
• Low-pulsation dosing
• Replaceable pump head made of stainless steel or PEEK
• Monitored control of flow rate by means of mini CORI-FLOW (optional)
• Integrated pressure monitoring, pressure control on request
• Easy operation and integration in control systems
• Temperature-controlled pump heads (-20…+130°C)
• Highly flexible due to various control concepts and housing types
Specifications
Pump type – compact high-pressure dosing pump
Delivery principle – dual-piston pump with damping piston
Dosing range (standard) – 0.001 ml/min…40 ml/min
Special version – 0.019 µl/min…40 ml/min
Viscosity range – up to 40 mPa.s
توضیحات:
Technology
piston
Mobility
stationary
Domain
industrial, for laboratories
Applications
high-pressure, dosing, for control
Material
stainless steel
Other characteristics
compact, standard, small, small-size
Flow
Max.: 0.04 l/min(0.01057 us gal/min)Min.: 0 l/min(0 us gal/min)
Pressure
Max.: 400 bar(5,801.51 psi)Min.: 0 bar(0 psi)
Power
120 W(0.16 hp)
Weight
4.5 kg(9.92 lb)
