نام محصول:
پمپ دورافتگی
نام انگلیسی:

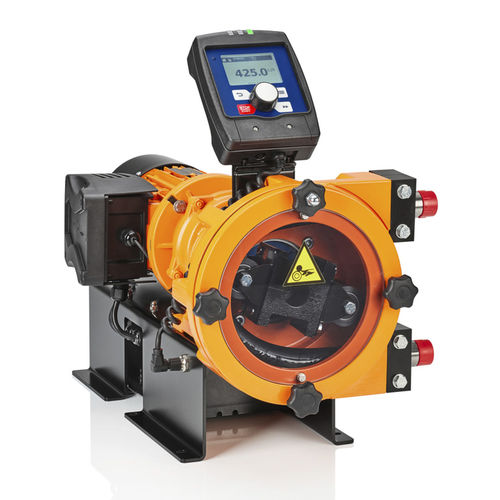

Peristaltic pump DULCOFLEX DFYa
برند:
ProMinent Group
مشخصات:
The valveless peristaltic pump DULCOFLEX DFYa guarantees precise, linear and reproducible metering in all process conditions. It meters gaseous, viscose, shear-sensitive media, possibly containing particles, with ease – ProMinent is therefore setting new standards in metering with peristaltic pumps.
The peristaltic pump DULCOFLEX DFYa combines the properties of top products from the ProMinent product range
The new metering pump DFYa, the big brother of the DFXa, adds an intelligent peristaltic pump
to the top capacity range of the ProMinent portfolio.
The new generation of peristaltic metering pumps can now be controlled electronically. It meters without the need for a valve and with a level of precision not previously possible. And yet it retains all the benefits of a peristaltic pump
, which is why highly outgassing, high-viscosity, abrasive or shear-sensitive fluids, sometimes containing particles, can also be perfectly metered with the DFYa.
As with the DFXa, hose replacement on the DFYa is also assisted by the pump. When the hose needs to be changed, the pump displays exact instructions for the steps to be followed and automatically moves into the correct positions for hose replacement. The different hose materials (NR, NBR, NBR-A, EPDM Hypalon) enable the DFYa to work with a very wide range of media to be metered.
The peristaltic pump
DFYa is simple to operate from the intuitive user interface with 4 keys and the click wheel. The DFYa thus joins the remaining ProMinent product range of intelligent metering pumps, which all share the same menu structure and user interface.
توضیحات:
Fluid
water, for chemicals, for food products, for gas
Operation
electric
Priming
self-priming
Technology
peristaltic
Domain
industrial, for the chemical industry, for water treatment, for the food and beverage industry, for the mining industry, for the paper industry
Applications
metering
Fluid specification
for abrasive fluids, for viscous fluids
Other characteristics
with electronic control, with digital control
Flow
Max.: 410 l/h(108.31054 us gal/h)Min.: 5.1 l/h(1.34728 us gal/h)
Pressure
2 bar, 4 bar, 8 bar(29.008 psi, 58.015 psi, 116.03 psi)
Power
400 W(0.54 hp)
