نام محصول:
پمپ دورافتگی
نام انگلیسی:

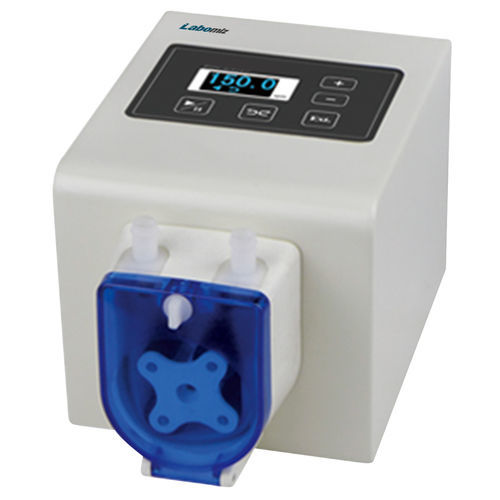

Peristaltic pump MCPP-1A
برند:
Labomiz Inc.
مشخصات:
Compact Peristaltic Pump MCPP-1A is a positive displacement pump with a digital knob to control speed. It pumps out fluids with flow rates based on model type and tubing sizes. The number of channels and rollers ensures durability and performance. It is designed for processes requiring limited weight, size and low EMI interference.
FEATURES
Stainless steel, corrosion resistant structure
OLED Screen displays current motor speed, direction and working state
Mechanical keypad for controlling direction and speed
Equipped with Stepper motor drive
Water-proof groove in the pump head mounting side
Transparent cover to view working of the pump head and tubing
Polyester pump head for rigidity and precision
External control function to start / stop the unit
Digital knob to control speed
توضیحات:
Priming
self-priming
Technology
peristaltic
Mobility
mobile
Domain
industrial
Applications
for control
Voltage
24 V
Other characteristics
compact, flow, digital
Flow
Max.: 1,000 l/min(264.17205 us gal/min)Min.: 0.00008 l/min(0.00002 us gal/min)
Fluid temperature
Max.: 40 °C(104 °F)Min.: 0 °C(32 °F)
Length
180 mm(7 in)
Width
113 mm(4.45 in)
Height
108 mm(4.25 in)
Weight
1.8 kg(3.97 lb)
