نام محصول:
پمپ دورافتگی
نام انگلیسی:
Peristaltic pump DosiPump DP1000
برند:
Biotool Swiss AG
مشخصات:
Smart pump
• Multipurpose peristaltic pump
• 2 versions: max. 800 ml/min – 2.4 l/min
• Stainless steel housing
• iP64 splash water protected
• Low pulsation by 10-roller pump head
• Different diameter double tubings
• Calibration and storage of 8 tubing
• Optional foot switch & stage bar
• Small foot-print takes up less bench space
The unique DosiPump DP1000 is a very precise peristaltic pump with 10-roller double pump head, therefore offering very low pulsation, “made in Switzerland”.Icon-driven intuitive software, touch screen, featuring a broad range of possible applications and with a sensational price-performance ratio.
Pump direction, speed, volume, antidrop, pause and cycle repetition are programmable.
Up to 8 calibrated tubing’s can be stored and 16 programs including up to 16 steps can be saved.
Different tube diameters can be used.
Extrem fast tubing exchange:

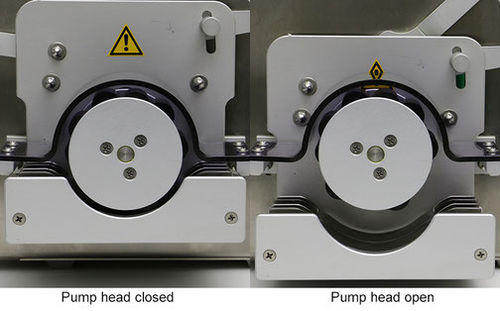

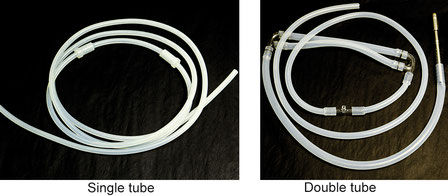

The sturdy aluminium mechanism opens the pump head “at the flick of a wrist”. Either two individual tubes or one twin tube can be attached to the pump. The ducts in the pump are spring-loaded, so as gentle on the tubing.
• DP1000 : 10-800 ml/min
• DP1000_fast: 40-2400 ml/min
• Easy to use
• Easy to calibrate
• Freely programmable
• Touch screen
• Speed, pause and antidrop function
• Rapid tubing Exchange
توضیحات:
Fluid
for solvents
Operation
electric
Technology
peristaltic
Mobility
mobile
Domain
for the chemical industry, for pharmaceutical applications
Applications
dosing
Material
stainless steel
Voltage
220 V
Protection level
water-resistant
Other characteristics
programmable
Flow
Min.: 0.01 l/min(0.00264 us gal/min)Max.: 2.4 l/min(0.63401 us gal/min)
Fluid temperature
Min.: 5 °C(41 °F)Max.: 45 °C(113 °F)
Length
275 mm(11 in)
Width
305 mm(12.01 in)
Height
205 mm(8.07 in)
Weight
7.1 kg(15.65 lb)
