نام محصول:
پمپ دورافتگی
نام انگلیسی:
Peristaltic pump ALP25N
برند:
Albin Pump
مشخصات:

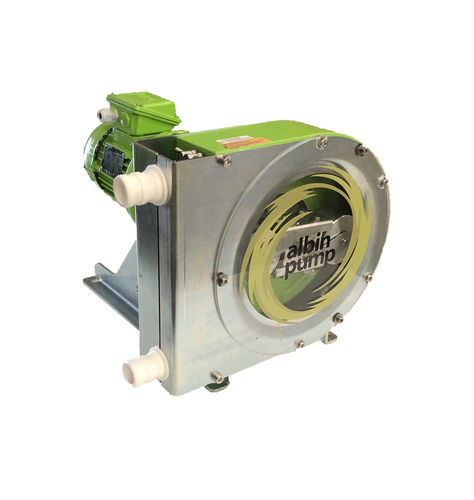

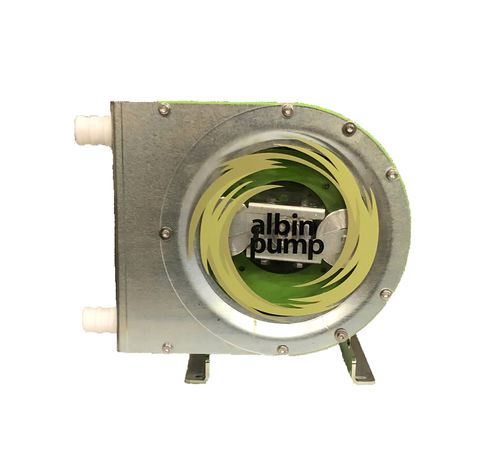

LOW PRESSURE (ALP) PERISTALTIC TUBE PUMP – ALBIN PUMP
Specifications:
Flow rate: up to 2,71 m3/h (12 gpm)
Discharge pressure: up to 4 bar (60 psi)
Maximum suction lift: – 9,8 m
Hoses: Polyamide reinforced, NR, EPDM, NBR, VITON, HYPALON, NR Food
Albin Pump pumps provide process confidence and offer cost savings through:
-Accurate and repeatable dosing and metering
-Long life and greater reliability
-Self-priming
-Continuous dry running
-Lowest cost of ownership
-Quick and easy maintenance
توضیحات:
Fluid
water, for chemicals, for food products, lubricating oil
Operation
electric
Priming
self-priming
Technology
peristaltic
Mobility
stationary, mobile
Domain
industrial
Applications
circulation, transfer, metering, for printing machines, for harsh environments, mobile, medium-pressure, process, discharge, loading, fermentation, distribution, for machinery, recirculation, for reverse osmosis, for high-temperature applications, unloading, high-temperature, filling, trial, reverse, unloader, washing, volumetric dispensing, sampling, chemical process, for industrial applications, cleaning, suction, for hazardous locations, descaling, sanitation, treatment, injection
Material
stainless steel, cast iron, aluminum, plastic, steel, PTFE, polypropylene, metal, PVDF
Fluid specification
for viscous fluids, for aggressive media, for solids-laden fluids, coagulant, for abrasive fluids, for corrosive fluids, dye, for low-viscosity fluids, cutting fluid, for mineral oil, for hazardous fluids, for fluids with lubricating properties, for toxic fluids, for used oil, for brine, flavouring
Protection level
chemical-resistant, abrasion-resistant, explosion-proof, explosion-proof, with integrated safety, hazardous-duty, ATEX, corrosion-resistant, robust, IP55
Other characteristics
suction, horizontal mount, compact, fixed-displacement, with frequency converter, for protective coverings, standard, modular, low-capacity, low-capacity, integrated-drive, transportable, with gear reducer, low-flow, OEM, small, oil-free, portable, low-vibration, stand-alone, variable-speed, medium-sized, skid-mounted, for packaging machines, with speed controller, floor-mounted, for fluids, adjustable-flow, low-pressure, self-adjusting, custom, low-NPSH, easy tube loading, with stand, seal-less, rugged, tank-mounted, base-mounted, ball bearing, high-reliability, rugged, bi-directional, medium-capacity, low-noise, adjustable, fixed-speed, continuous-flow, flange, variable-flow, corrosion-proof, fixed-flow, rugged, vertical-mount, multiphase, small-size, rotary, in-line
Flow
Max.: 2.71 m³/h(95.70275 ft³/h)Min.: 0.3 m³/h(10.5944 ft³/h)
Pressure
Max.: 4 bar(58.015 psi)Min.: 1 bar(14.504 psi)
Power
0.55 kW(0.75 hp)
Fluid temperature
Max.: 135 °C(275 °F)Min.: 0 °C(32 °F)
Input diameter
38 mm(1.496 in)
Output diameter
38 mm(1.496 in)
Weight
55 kg(121.25 lb)
