نام محصول:

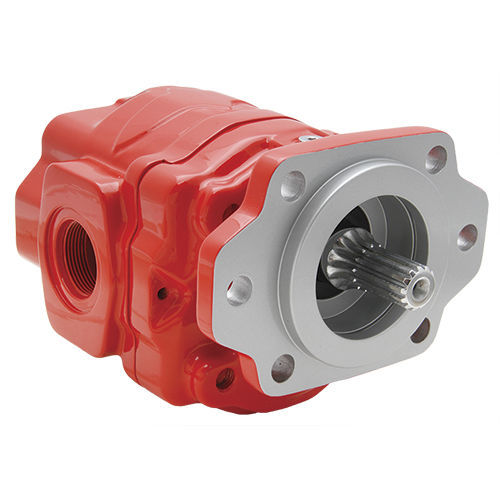

پمپ دنده هیدرولیک
نام انگلیسی:
Hydraulic gear pump W series
برند:
Muncie Power Products
مشخصات:
Muncie’s Optimum Series high performance gear pumps/motors offer high pressure capabilities and are designed for durability and long life for many truck and mobile equipment applications. Full featured design allows for reduced inventory requirements and installation flexibility. The Optimum Series offers superior benefits & added value in a cost competitive package unmatched by the competition.
Why the Optimum Pump?

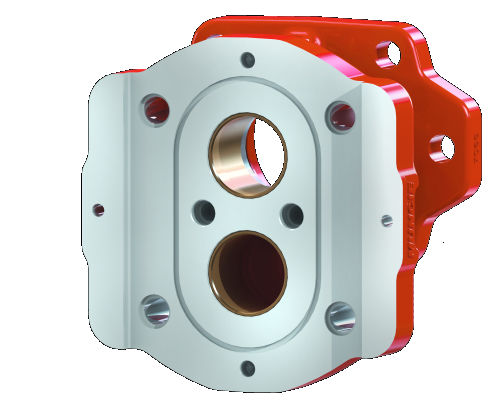

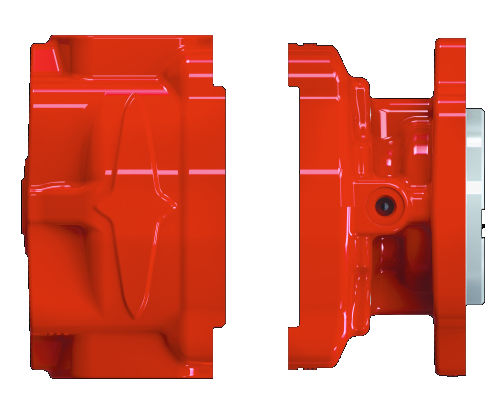

Patented OPTI-Grip® technology resists casting separation by press fitting two piece castings together for greater structural integrity over other traditional designs
Rigid pump design for long life and maintained peformance
Allows for higher pressure capabilities
Available in tandem and triple configurations
13 tooth gear design provides smoother operation and reduces hydraulic noise
Standard bi-directional design with both side and rear ports
Premier performance for a wide variety of applications across several industries
8 Pump Displacements Available
OPTI-Grip® (Patent Pending) design
Long life, High Performance Bushings
Noise reducing, quiet design
Bi-Rotational, 4 Port Design Standard (SAE straight thread only)
Standard (SAE straight thread only)
توضیحات:
Type
gear
Other characteristics
standard, mobile, tandem, triple, bi-directional
Pressure
Max.: 300 bar(4,351 psi)Min.: 210 bar(3,046 psi)
Speed
Max.: 3,600 rpm(22,619 rad.min-1)Min.: 600 rpm(3,770 rad.min-1)
Weight
Max.: 23 kg(50.71 lb)Min.: 18.5 kg(40.79 lb)
