نام محصول:

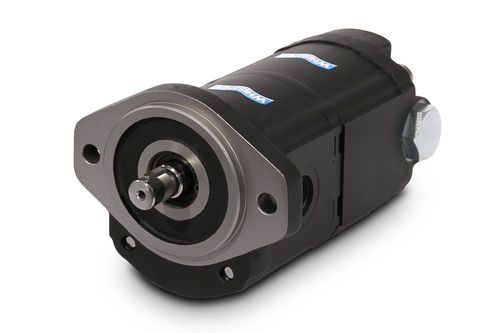

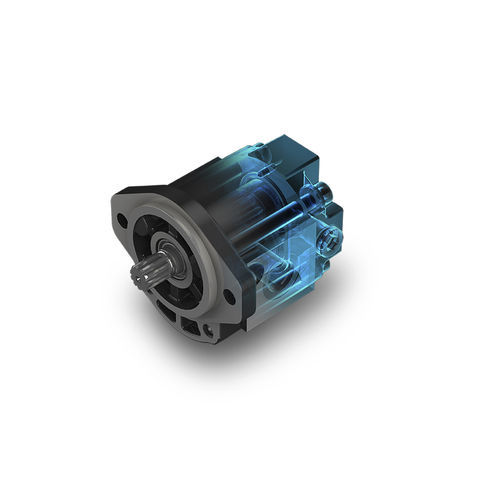

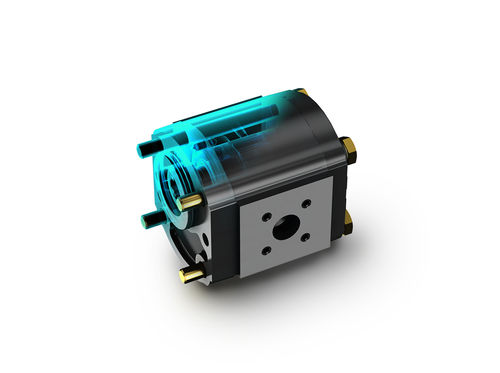

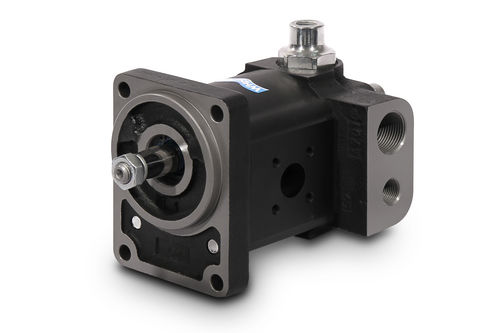

پمپ دنده هیدرولیک
نام انگلیسی:
Hydraulic gear pump WHISPER
برند:
CASAPPA
مشخصات:
Gear pumps and motors built in three pieces with an extruded body in high resistance aluminium alloy.
The wide choice of shafts, flanges and ports, in compliance with all international standards (SAE, DIN and EUROPEAN) allow for their use in an infinite variety of applications.
Displacements from 0.07 in³/rev (1,07 cm³/rev) to 5.56 in³/rev (91,10 cm³/rev) available in groups 10, 20 and 30.
High efficiencies
Integrated outboard bearings for heavy duty applications
Multiple units available in standard version, common inlet and separated stages
Electro-hydraulic fan drive system
Custom design
Built-in valves
Anti-cavitation valves
Maximum pressure relief valves
Priority valves
“Load sensing” priority valves
By-pass electric valves
Proportional relief valves
Reverse valves
توضیحات:
Type
gear
Operation
electric, electro-hydraulic
Other characteristics
standard, custom, integrated
Pressure
Max.: 300 bar(4,351 psi)Min.: 0 bar(0 psi)
Speed
4,000 rpm(25,133 rad.min-1)
