نام محصول:
پمپ درایو مستقیم

نام انگلیسی:
Direct-drive pump HyPlex® Prime

برند:
Flow Europe GmbH – Flow Waterjet Europe

مشخصات:

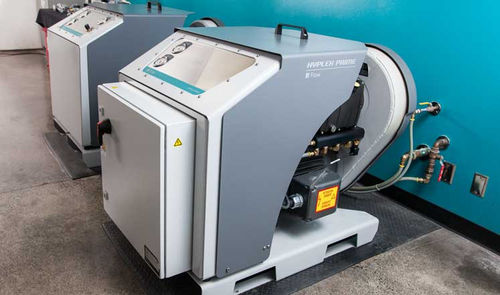

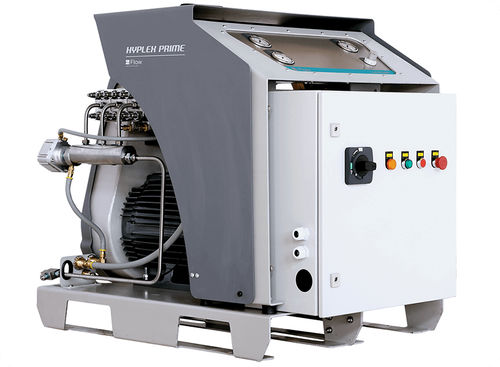

The HyPlex@ Prime pump represents the next generation of energy efficient, direct drive ultrahigh-pressure waterjet pumps. The HyPlex’s direct drive delivers superior ratio of input energy to the waterjet.

Next Generation Seal Technology

Utilizes the next generation of seal technology from Flow’s 94,000 psi HyperPressure™ pumps.

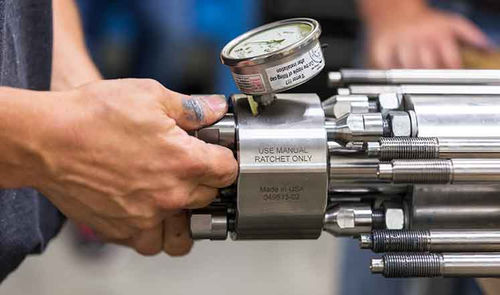

Pressure Loading Tool

Quickly, easily, and accurately perform maintenance on high-pressure components using a single wrench to tension four (4) tie rods simultaneously.

Patented PAC-V™ Technology

The PAC-V pressure control automatically adjusts water overflow when the jet turns off or when the operator changes orifice size reducing complexity of running an ultrahigh-pressure direct drive pump.

Modular Pump Design

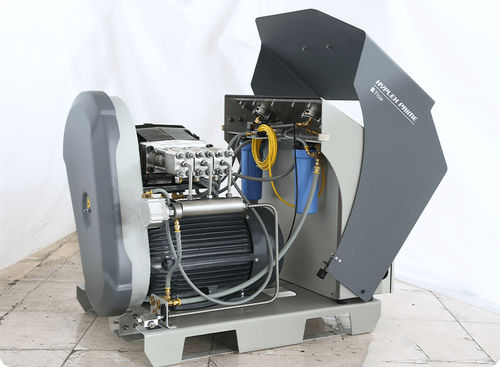

Allows for a wide variety of options such as dual-pressure control. The HyPlex Prime is mounted on its own purpose-built skid for mobility, vibration isolation, and ease of service.

توضیحات:
Fluid
water

Technology
centrifugal

Mobility
stationary

Domain
industrial

Applications
high-pressure, loading, ultra high-pressure, for water-jet cutting machines

Other characteristics
modular, direct-drive

Flow
3.17 l/min, 5.07 l/min(0.83743 us gal/min, 1.33935 us gal/min)

Pressure
3,800 bar, 4,150 bar(55,114.34 psi, 60,190.661 psi)
