نام محصول:
پمپ خورشیدی
نام انگلیسی:
Solar-powered pump NERA
برند:
NASTEC
مشخصات:
Centrifugal pump.
Impellers and diffusers in AISI 304 stainless steel.
Built-in no-return valve.
Encapsulated electronics.
High-efficiency encapsulated inverter.
MPPT for maximum flow in all weather conditions.
Overload, overheating and dry-run protected.
Removable power cable.
Water level sensor.
Helical rotor pump.
NERA pumps are equipped with a helical rotor that moves within a double helix rubber stator. The rotor is made of AISI 304 stainless steel and coated with a hard chrome surface.
During operation, the rotor moves on the rubber surface and it’s lubricated by the pumped water. The flow rate is directly proportional to pump speed while the pres-sure supplied is kept almost constant.
In this way, unlike a centrifugal pump, the helical rotor pump provides high head even at low rpm, ensuring water on surface even with very low available power or low irradiation. In addition, the helical rotor pumps feature higher hydraulic efficiency than centrifugal pumps of same flow.
This saves in the number of PV panels necessary for the application.
Motor.
High efficiency permanent magnet motor.
Resined and encapsulated stator made of AISI 304stainless steel.
Water-cooled rotor.
Kingsbury thrust bearing.

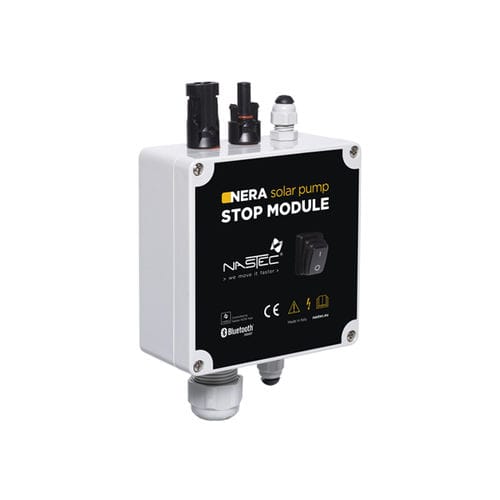

STOP MODULE
To connect NERA to the solar system, the STOP MODULE device is available as an accessory. It is equipped with:
MC4 connectors for fast and easy panels connection.
Button for pump start and stop.
Connection for float or pressure switch.
Surge protection.
توضیحات:
Fluid
water
Operation
solar-powered
Priming
submersible
Technology
centrifugal
Mobility
stationary
Domain
solar
Material
stainless steel
Other characteristics
compact, high-efficiency, lubricated, built-in, electronic, integrated-drive
Flow
Max.: 8 m³/h(282.51733 ft³/h)Min.: 0.5 m³/h(17.65733 ft³/h)
Head
Max.: 60 m(196’10” )Min.: 10 m(32’09” )
Power
800 W(1.09 hp)
Fluid temperature
32 °C(89.6 °F)
Weight
13 kg(28.66 lb)
