نام محصول:
پمپ خلاء
نام انگلیسی:

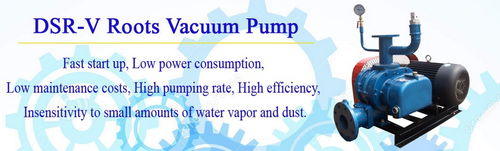

Roots vacuum pump DSR200V
برند:
Shandong Dacheng Machinery Technology Co., Ltd.
مشخصات:
DSR200V Roots Vacuum Blowers adopt the advanced technology of Japan, its air capacity is 27.08m³/min – 58.65m³/min, the vacuum is from -9.8Kpa to 49Kpa. The main characteristic of our air blower is small volume, light weight, flow strong, noise small, steadily reliable operation.
Feature
1. Air capacity and pressure can be customized
2. Stable air capacity and less pressure variation
3. Clean air not with oil moist
4. Construction simple and easy maintenance
5. Bearing are all lubricated by oil moist
6. Long service life
Specification
Type of technology – Positive displacement blowers
Discharge Diameter – 200mm(or customized)
Parts
Inlet filter silencer
Discharge silencer
Anchor bolts
Baseframe,
Safety valve,
Check valve,
Discharge pressure gauge,
Flexible connections
Lubricant.
Package
Fumigation free plywood case
Iron case
Certificate
CE certificate, ISO9001 certificate and SGS certificate.
Performance parameters
The performance parameters table shows the model, outlet diameter, rotate speed, discharge pressure, air capacity and power of motor.
1. The air capacity and pressure in the tables is in standard suction state. The standard suction state is 20℃ temperature, 1.033 kgf/cm2(101.3Kpa) Standard atmospheric pressure and 65% relative humidity.
2. The air capacity and pressure range of some blower models is repeated, to ensure the service life and low noise, should use the larger model.
توضیحات:
Technology
Roots
Lubrication
oil-free
Number of stages
single-stage
Applications
for the chemical industry, for gas, for pneumatic conveying, for bulk materials, for dairy products
Other characteristics
low energy consumption
Ultimate vacuum
Max.: 40,000 Pa(5.8 psi)Min.: -13,300 Pa(-1.93 psi)
Flow rate
Max.: 58.65 m³/min(2,071.21 ft³/min)Min.: 27.08 m³/min(956.32 ft³/min)
Power
Max.: 75 kW(101.97 hp)Min.: 18.5 kW(25.15 hp)
Weight
860 kg(1,895.98 lb)
