نام محصول:

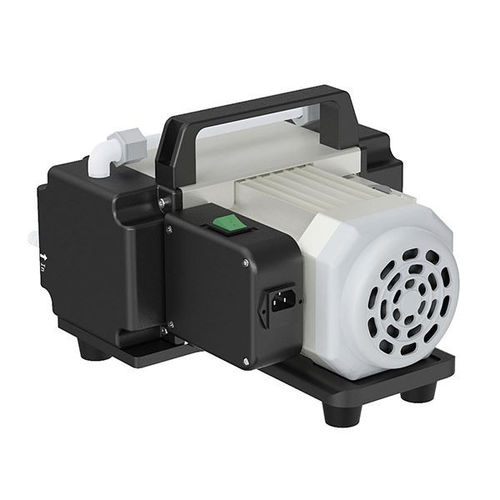

پمپ خلاء گریز از مرکز

نام انگلیسی:
Centrifugal vacuum pump V series

برند:
BEING TECHNOLOGY

مشخصات:
V series diaphragm vacuum pump anticorrosion is a medium for the gas two-stage pump, all with the gas contact part, are PTFE (PTFE) material, corrosion resistance, wide range of applications, can completely replace the water circulation pump, Suitable for chemical, pharmaceutical, petrochemical and other industries on the treatment of corrosive gases, such as filtration, vacuum distillation, rotary evaporation, vacuum concentration, centrifugal concentration, solid phase extraction and so on.

Features

Anti-strong chemical corrosion

● Anticorrosion vacuum pump using a special diaphragm (diaphragm surface composite PTFE coating) and pump head design, including all joints and piping to ensure that the contact with the gas part of the imported PTFE material, so Resistant to most of the corrosive gas; at the same time electrical switches and shells are also anti-corrosion treatment, especially for the transmission mechanism and the circuit part of the use of corrosion-resistant materials to form a confined space, and the external environment completely isolated, so that the vacuum pump is not only corrosive media, But also perfect for corrosive environment, completely solve the vacuum pump chemical corrosion problems.

توضیحات:
Technology
diaphragm, centrifugal

Lubrication
lubricated

Supply voltage
220VAC

Number of stages
single-stage, dual-stage

Applications
for gas, for distillation

Other characteristics
anti-corrosion

Ultimate vacuum
8 mbar(0.12 psi)

Flow rate
Max.: 125 l/min(33.02 us gal/min)Min.: 20 l/min(5.28 us gal/min)

Power
120 W, 240 W, 400 W, 600 W(0.16 hp, 0.33 hp, 0.54 hp, 0.82 hp)

Operating temperature
Max.: 40 °C(104 °F)Min.: 5 °C(41 °F)

Length
Max.: 380 mm(15 in)Min.: 165 mm(6 in)

Height
200 mm, 210 mm, 275 mm, 355 mm(7.87 in, 8.27 in, 10.83 in, 13.98 in)
