نام محصول:
پمپ خلاء کوچک
نام انگلیسی:

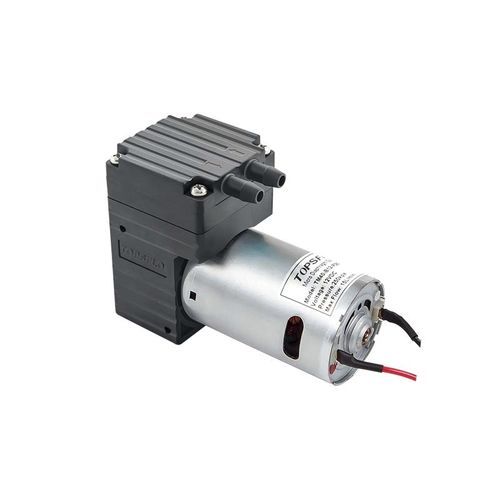

Small vacuum pump TM40A-B series
برند:
TOPSFLO INDUSTRY AND TECHNOLOGY CO., LIMITED
مشخصات:
Highest Performance/Size Ratio
Innovative and efficient engineering designs enable the TM 40 Series to push the performance envelope in a lightweight, compact size.
Performs Quieter
Optimized head, chamber, and flow path reduce noise without compromising performance.
Uncontaminated flow
no contamination of the media due to oil-free operation
Little vibration
Because of leading edge technologies, top quality bearing, superior brushless motor
High level of gas tightness
thanks to stress-optimised structured diaphragm, newly-designed valves and sealing systems, precise placement of the pump head
Extreme chemical resistance
The use of chemically resistant materials optional such as PTFE FKM or other ,material combinations for the parts which allows the corrosive gas to be pumped.
Optimal solution for your application
a wide standard range of materials, motors , voltages configurates multiple components system selected
Application:
The versatility of TOPSFLO pumps allows a wide field of applications to be covered. Over many years our pumps have proved themselves in the following areas:
Industrial pressure and vacuum applications
Portable Analytical Instruments
Medical Diagnostic Equipment
Air Quality Sampling Monitors
Respiration Monitors
Gas or Odor Leak Detectors
توضیحات:
Technology
diaphragm
Lubrication
oil-free
Supply voltage
12 Vdc
Number of stages
single-stage
Applications
for medical applications, for laboratories
Other characteristics
compact, small
Ultimate vacuum
80,000 Pa(11.6 psi)
Flow rate
11 l/min, 16 l/min(2.91 us gal/min, 4.23 us gal/min)
