نام محصول:
پمپ خلاء پیچ
نام انگلیسی:

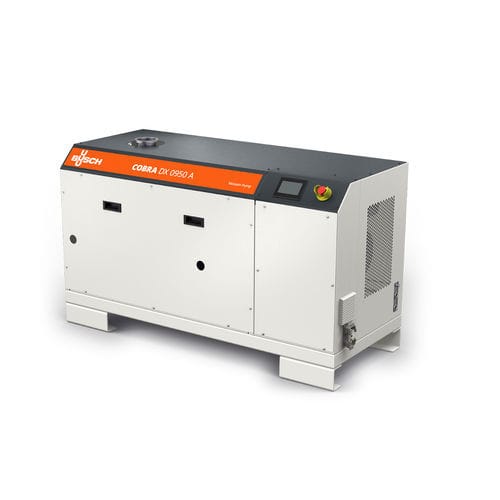

Screw vacuum pump COBRA DX 0650/0950 A
برند:
Busch Vacuum Solutions
مشخصات:
Saving Energy with Sustainable Vacuum Solutions
Busch Vacuum Solutions has now launched the first vacuum pump of the new DX series on the market, the COBRA DX 0650/0950 A. It is a dry vacuum pump with state-of-the-art screw vacuum technology for excellent running characteristics, high vapor and particle tolerance, and extremely energy-efficient operation.
The high-performance COBRA DX 0650/0950 A is perfectly suited for many rough and medium vacuum applications, such as the solar industry, lithium battery production, drying, food packaging, coating, vacuum furnaces, or as the heart of a central vacuum system.
With variable speed drive technology, the new COBRA DX 0650/0950 A covers the pumping speed range up to 950 m³/h and achieves an ultimate pressure of up to 0.01hPa (mbar). All operating data is constantly recorded and saved.
Thanks to its plug-and-pump concept, COBRA DX 0650/0950 A is user-friendly and easy to handle. No further installation is required before start-up. A touchscreen with intuitive menu navigation allows the control of the most important functions. An optimal vacuum level can be achieved at all times thanks to the intelligent driving unit with variable speed control and various operating modes. This reduces energy consumption and ensures that the vacuum pumps always run under optimum conditions, thus keeping operating costs to a minimum.
With the main benefits of the well-proven COBRA NX PLUS, COBRA DX 0650/0950 A takes up less space due to its optimized footprint. Therefore, it is the perfect compromise between the standard COBRA NX and the advanced COBRA NX PLUS versions.
توضیحات:
Technology
screw
Lubrication
dry
Number of stages
single-stage
Other characteristics
high-performance
Ultimate vacuum
0.01 mbar(0 psi)
Flow rate
950 m³/h(33,548.93 ft³/h)
Power
18.5 kW(25.15 hp)
Length
1,700 mm(67 in)
Width
700 mm(27.56 in)
Height
1,000 mm(39.37 in)
Noise level
75 dB
Weight
1,100 kg(2,425.08 lb)
