نام محصول:

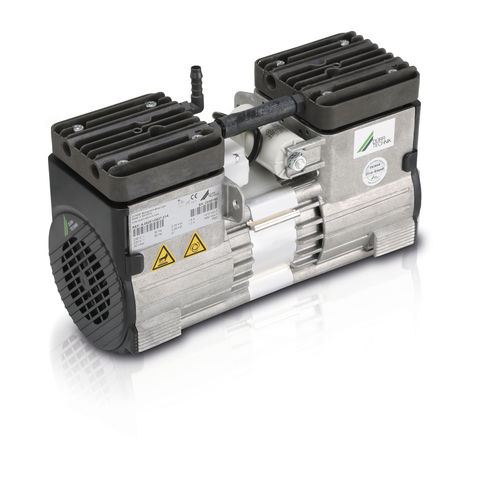

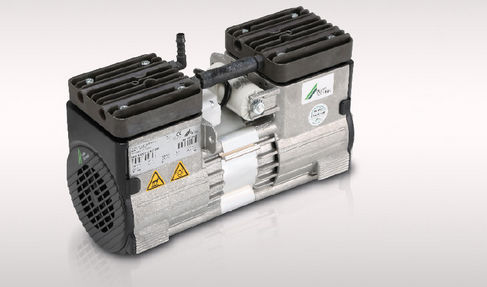

پمپ خلاء پیستون
نام انگلیسی:
Piston vacuum pump KV 15
برند:
DÜRR TECHNIK
مشخصات:
The oil-free piston vacuum pumps of the range KV are realized where utmost operating safety is required, as for example in 24/7-application in industry enterprises, for retention of hydraulic oils on service at construction machinery as well as for medical machines. The oil-free piston-vacuum pumps offer as a 2-phase pump a vacuum of up to 30 mbar. The characteristic of the oil-free piston-vacuum pumps are the integrated, overdimensioned bearings. Owing to this, the best possible lifetime and reliability of the vacuum pumps is achieved. The suction capacity of oil-free piston-vacuum pumps of the range KV remains almost unchanged even after many thousand operating hours because of the exactly aligned components.
Advantages
Extremely reliable
Long lifetime
Constant flow volume
Piston principle
توضیحات:
Technology
piston
Lubrication
oil-free
Number of stages
single-stage
Applications
for medical applications, suction
Other characteristics
low-noise level
Ultimate vacuum
Max.: 150 mbar(2.18 psi)Min.: 30 mbar(0.44 psi)
Flow rate
Max.: 72 l/min(19.02 us gal/min)Min.: 38 l/min(10.04 us gal/min)
