نام محصول:
پمپ خلاء ونتوری
نام انگلیسی:
Venturi vacuum pump VKM73
برند:
VMECA
مشخصات:

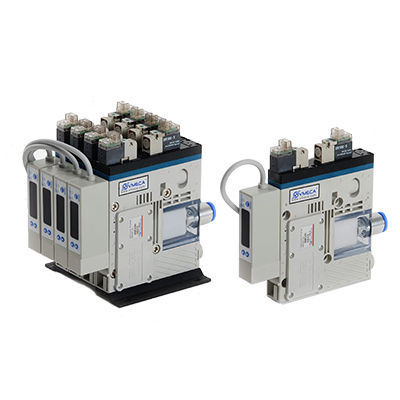

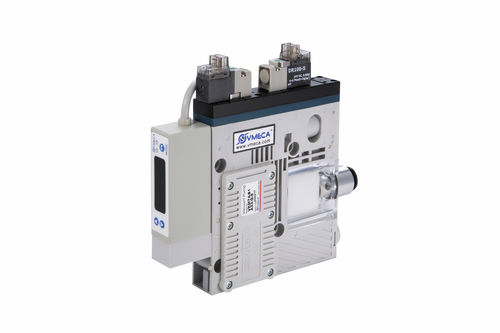

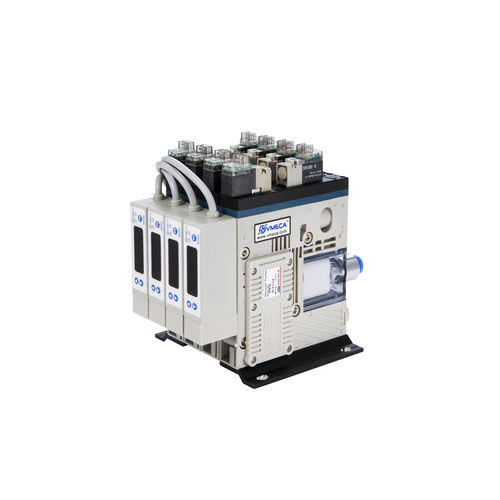

VMECA Mega Keyboard Pump is stackable vacuum generator. Each pump creates vacuum as an individual pump. The advantages of this unit is that it can be operated using just two control valve while retaining individual vacuum lines separate to one another, therefore if any leakage or surface deformation occurs and one pad loses it vacuum, it does not effect the vacuum level in the other pads. Pumps can be stacked up from 8 units depending upon requirements.
Individual vacuum operation
Stackable up to 8 vacuum generators
Quick response time
Reliable performance
Multi-stage ejector
توضیحات:
Technology
Venturi
Lubrication
lubricated
Number of stages
single-stage
Other characteristics
compact, mini
Ultimate vacuum
-92,000 Pa, -85,000 Pa(-13.34 psi, -12.33 psi)
Flow rate
Max.: 111 l/min(29.32 us gal/min)Min.: 1.98 l/min(0.52 us gal/min)
Operating temperature
Max.: 80 °C(176 °F)Min.: -20 °C(-4 °F)
Weight
212 g(7.48 oz)
