نام محصول:
پمپ خلاء ونتوری
نام انگلیسی:

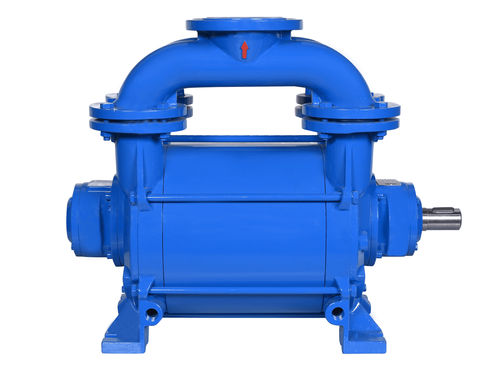

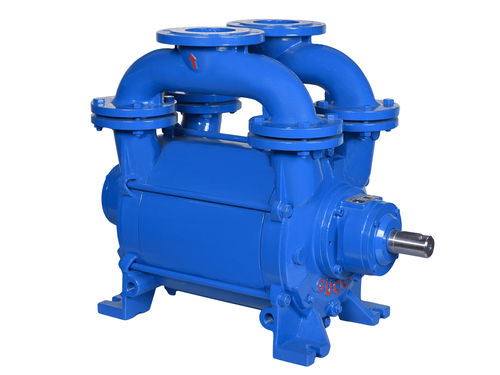

Venturi vacuum pump GMVT 275/220
برند:
Gücüm Pompa Makina Sanayi Tic. A.S.
مشخصات:
High suction capacity, low energy Consumption.
Plates are stainless steel.
Safe and efficient operation.
Able to pump every kind of gases and vapors.
Works quiet and reduced vibration.
No need to lubrication.
Low operation and investment cost.
Minimum maintenance with high efficiently.
No metallic contact of the rotating parts.
Able to use every medium with wide material alternatives.
Able to pump less liquid with gases.
Provide 0 leakproofing with mechanical seal.
توضیحات:
Technology
Venturi, liquid ring
Lubrication
lubricated
Number of stages
single-stage
Applications
suction, liquids
Other characteristics
stainless steel, low energy consumption
Ultimate vacuum
Max.: 400 mbar(5.8 psi)Min.: 33 mbar(0.48 psi)
Flow rate
Max.: 630 m³/h(22,248.24 ft³/h)Min.: 450 m³/h(15,891.6 ft³/h)
Power
15 kW(20.39 hp)
Operating temperature
70 °C, 100 °C(158 °F, 212 °F)
Length
1,370 mm(54 in)
Width
460 mm(18.11 in)
Height
730 mm(28.74 in)
Noise level
75 dB
Weight
215 kg, 395 kg(473.99 lb, 870.83 lb)
