نام محصول:
پمپ خلاء ونتوری
نام انگلیسی:

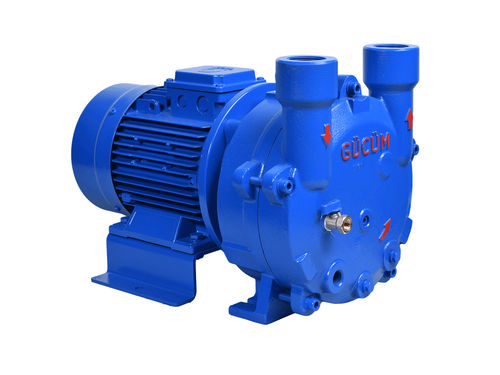

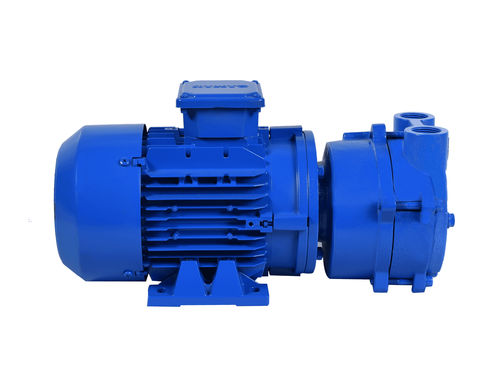

Venturi vacuum pump GMVP 120/030
برند:
Gücüm Pompa Makina Sanayi Tic. A.S.
مشخصات:
Monoblock design, no coupling.
Plates are stainless steel.
shaft not contact with the medium.
Safe and efficient operation.
Able to pump every kind of gases and vapors.
Works quiet and reduced vibration.
No need to lubrication.
Low operation and investment cost.
Minimum maintenance with high efficiently.
No metallic contact of the rotating parts.
Provide 0 leakproofing with mechanical seal.
توضیحات:
Technology
Venturi
Lubrication
lubricated
Number of stages
single-stage
Other characteristics
stainless steel
Ultimate vacuum
Max.: 400 mbar(5.8 psi)Min.: 33 mbar(0.48 psi)
Flow rate
Max.: 25 m³/h(882.87 ft³/h)Min.: 15 m³/h(529.72 ft³/h)
Power
0.75 kW(1.02 hp)
Operating temperature
70 °C, 100 °C(158 °F, 212 °F)
Length
365 mm(14 in)
Width
160 mm(6.3 in)
Height
200 mm(7.87 in)
Noise level
69 dB
Weight
18 kg(39.68 lb)
