نام محصول:
پمپ خلاء ونتوری
نام انگلیسی:

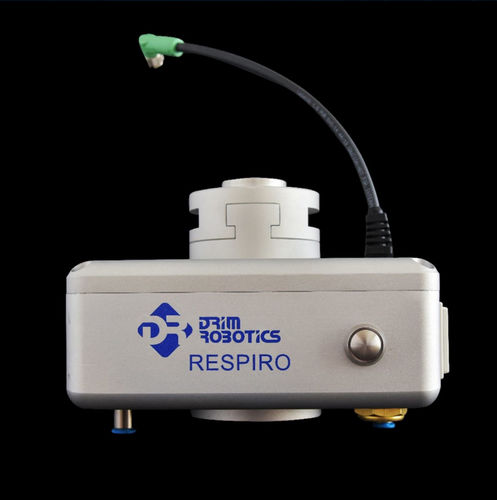

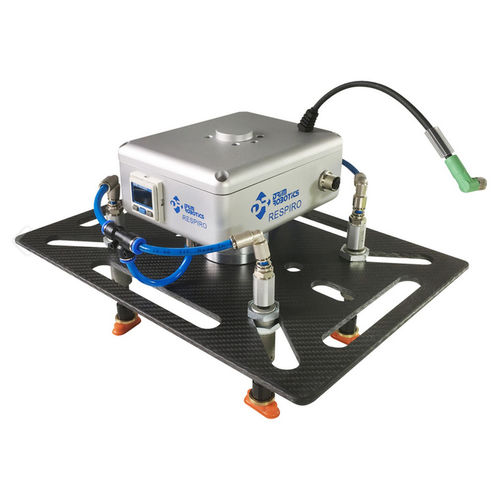

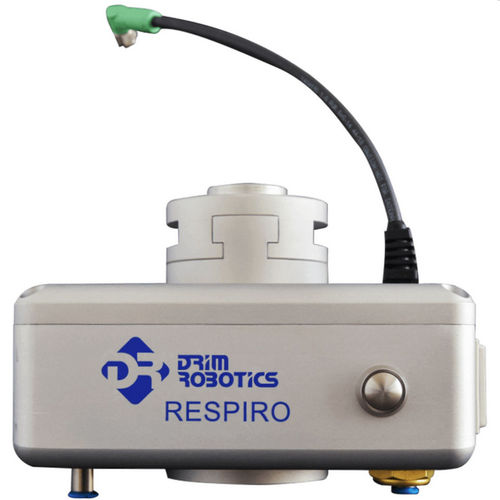

Venturi vacuum pump Respiro UR+
برند:
Drim Robotics
مشخصات:
Respiro UR+
Respiro is born to support cobots in handling applications, in the field of logistics and packaging.

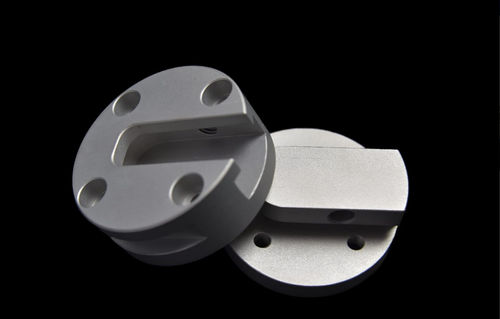

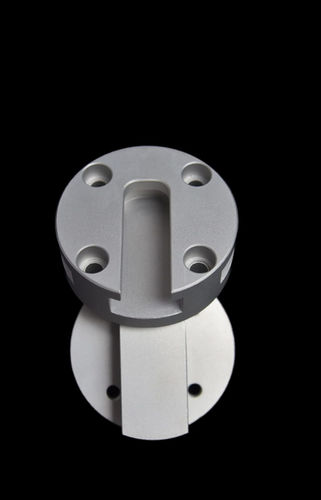

It is an electrical vacuum generator, independent of compressed air. With its two separated air circuits is very easy to set up a load-unload appliction. To complete Respiro is needed a gripper, using its builtin mechanical tool changer. We offer different solution with our CarboGrip, made in carbon, from 1 to 8 vacuum cups.
Thanks to the URCap, Respiro can be perfectly adapted to fulfill your individual needs.
Click gallery or file downloads below for details on Respiro UR+ certified product.
Learn more about collaborative robots from Universal Robots
Features
Built-in electric vacuum pump
Dual gripping feature: A and B channels can be programmed individually
No external air supply needed
Integrated software
Internal PLC to react in case of air leak
Internal PLC to automatic Blow after release
توضیحات:
Technology
Venturi
Lubrication
lubricated
Number of stages
single-stage
Ultimate vacuum
-640 mbar(-9.28 psi)
Flow rate
1,800 m³/h(63,566.4 ft³/h)
