نام محصول:
پمپ خلاء ونتوری

نام انگلیسی:
Venturi vacuum pump LEMAX series

برند:
COVAL

مشخصات:
. Nozzle Ø : 1 ; 1.2 ; 1.4 mm

. Vacuum level : 85%

. Suction flow rate : up to 70 Nl/min

. Integrated pressure regulator (ASR)

. Integrated vacuum regulator (ASC)

. M8 connections

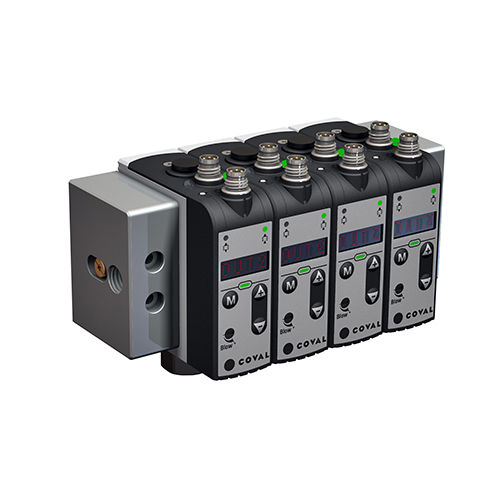

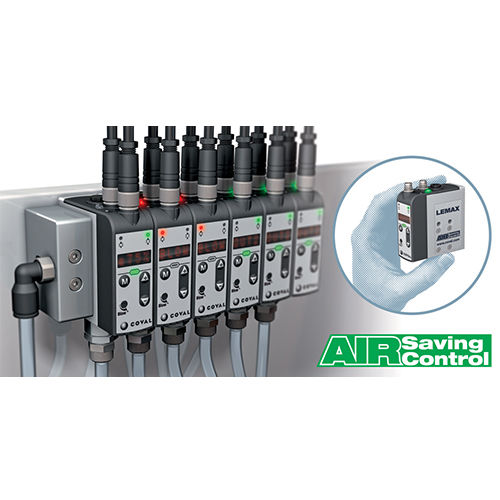

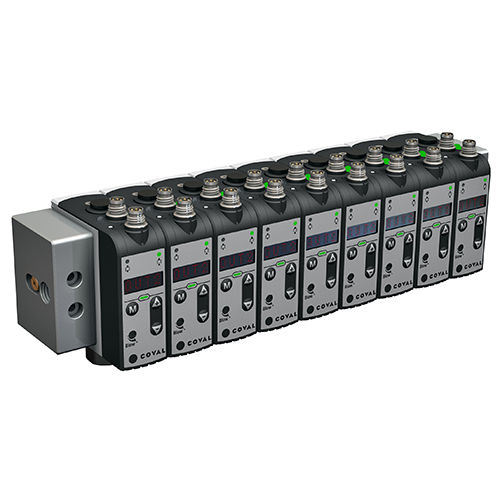

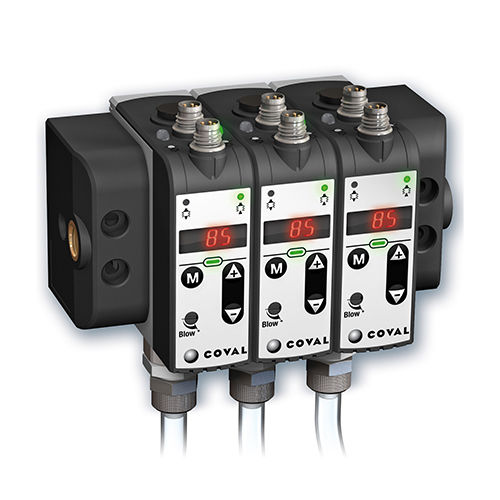

LEMAX is a new mini vacuum pump integrating technologies developed by COVAL for better productivity, efficiency and energy savings. It has a wide range of applications: packaging, robotics, plastics.

For the first time LEMAX integrates technology known as ASC (Air Saving Control). It generates energy savings of between 60% and 97%, depending on the products to be handled. The ASC activates to limit energy consumption at two levels:

• Integrated vacuum regulation: reduction of energy consumption and noise level.

• The ASC analyses the application and adapts itself to the airtight or porous pieces in order to optimize operation and energy consumption.

Advantages

• Energy savings of 75 to 99% (depending on application) thanks to automatic ASC (Air Saving Control) operation.

• “All-in-one” solution, no more peripherals to be added.

• Simplified installation and use thanks to the Plug & Play system.

• Unmatched compactness : Installation close to suction cups (short response times and energy savings).

• No clogging, thanks to the through-type silencer.

• Controlled or timed blow-off.

• Gripping safety in the event of electricity shut-off.

• Smart communication : Easier experience at all stages (initial settings, production, maintenance).

Air Saving Control (ASC)

توضیحات:
Technology
Venturi

Lubrication
oil-free

Number of stages
single-stage

Applications
for medical applications, for food, for pharmaceutical applications, for the plastics industry, for packaging, for industrial applications, for robots

Other characteristics
compact, small, high-performance, miniature, pneumatic

Ultimate vacuum
-850 mbar(-12.33 psi)

Flow rate
Max.: 70 l/min(18.49 us gal/min)Min.: 29 l/min(7.66 us gal/min)
