نام محصول:
پمپ خلاء ونتوری
نام انگلیسی:

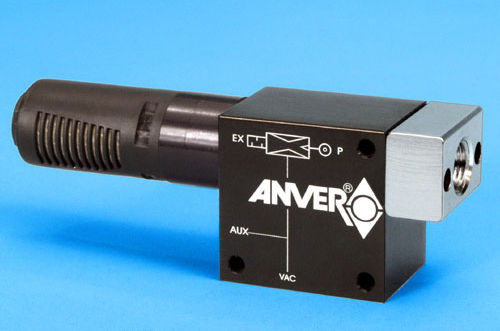

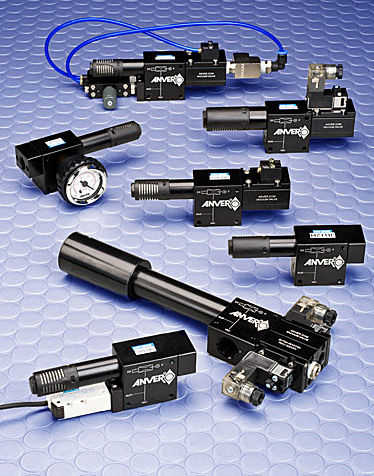

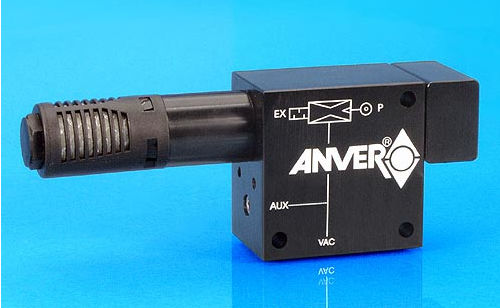

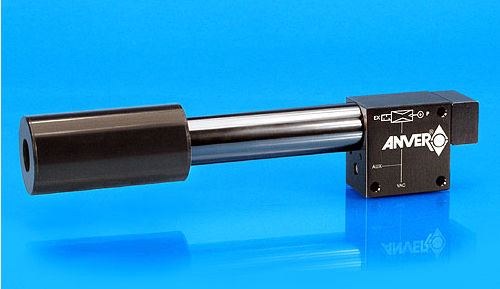

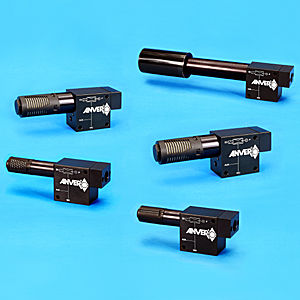

Venturi vacuum pump JB series
برند:
ANVER Vacuum System Specialists
مشخصات:
The preferred air pumps for most applications – Simple to install, low cost, no moving parts, proven reliability
The JB Series Pumps can handle the majority of applications more economically than others because these pumps are designed without internal moving parts, making them extremely reliable. Virtually maintenance-free, these pumps will work almost indefinitely by simply using a filter and dry, clean air to keep out debris.

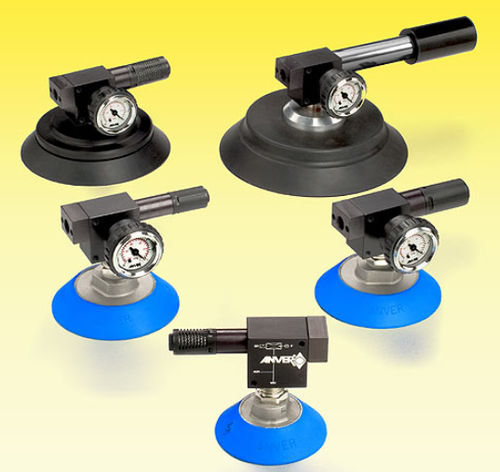

Suitable for use with the JB Series Pumps are the JB Series Vacuum Generators, which can achieve vacuum control from a manual or automatic control valve located on a compressed air supply line (not included with the standard generator).
The JB Series Vacuum Generators and Vacuum Pumps are recommended for use where vacuum is required on an intermittent basis or when a basic/practical, low cost design is desired.
• Vacuum level: 90% (27 in. Hg Standard)
• Vacuum gauge
• Mufflers
• Vacuum port extension
• Vacuum switches
• Control valve
توضیحات:
Technology
Venturi
Lubrication
dry
Supply voltage
24 Vdc, 110VAC
Number of stages
single-stage
Flow rate
54 l/min, 75 l/min, 130 l/min, 200 l/min, 270 l/min(14.27 us gal/min, 19.81 us gal/min, 34.34 us gal/min, 52.83 us gal/min, 71.33 us gal/min)
Operating temperature
Max.: 80 °C(176 °F)Min.: -10 °C(14 °F)
