نام محصول:
پمپ خلاء متقابل
نام انگلیسی:

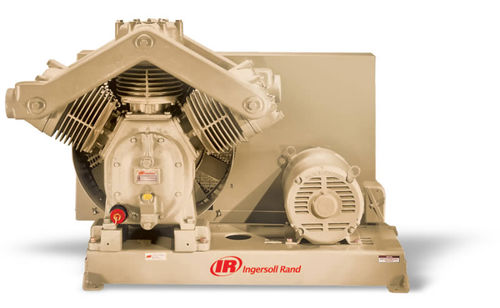

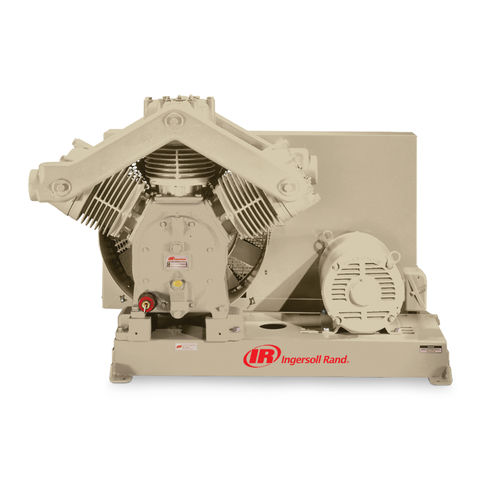

Reciprocating vacuum pump V series
برند:
INGERSOLL RAND
مشخصات:
Engineered for compactness, economy and dependability, our vacuum pumps are the number one choice for demanding applications, providing top operating efficiency combined with low maintenance. And best of all, these vacuum pumps are backed by Ingersoll Rand, the world’s leader in air compressor and pump manufacturing.
Long-Life: Durable cast iron frame and cylinder construction
Superior Pump Efficiency: Separately cast cylinders with deep radial fins for improved cooling and efficiency
Easy to Service: Accessible stainless steel valve and one piece connecting rod simplifies maintenance and service
Advanced Safety Features: Standard low oil-level switch to provide constant protection of the compressor
Reliable Operation: All Season Select synthetic lubricant increases efficiency; with 2,000 hours of service between changeouts, it performs four times longer than petroleum-based lubricant
Two-Year Warranty Available: Purchase an All-Season Select lubricant start-up kit, and receive all the parts you need for start-up and the first year of maintenance, along with an extended pump warranty
توضیحات:
Technology
reciprocating
Lubrication
lubricated
Supply voltage
230VAC, 115VAC, 460 VAC, 575 VAC
Number of stages
single-stage
Other characteristics
compact, stainless steel, cast iron
Ultimate vacuum
14.24 psi
Flow rate
Max.: 133 ft³/min(3.77 m³/min)Min.: 32 ft³/min(0.91 m³/min)
Power
2 ch, 5 ch, 7.5 ch(2 hp, 5 hp, 7.5 hp)
Length
69 in, 70 in
Width
22 in, 25 in, 33 in
Height
45 in, 47 in, 54 in
Weight
500 lb, 660 lb, 1,200 lb(226.8 kg, 299.37 kg, 544.31 kg)
