نام محصول:
پمپ خلاء روغن کاری شده
نام انگلیسی:

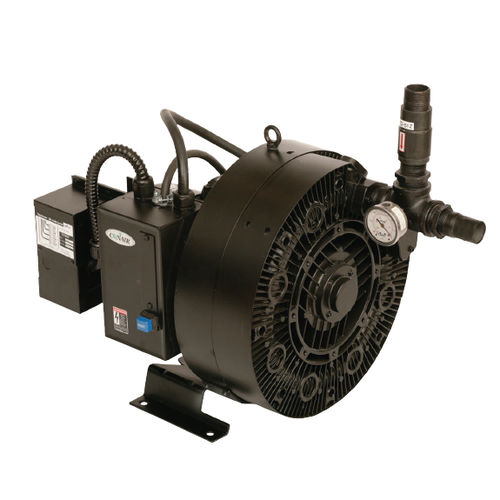

Lubricated vacuum pump RG series
برند:
Conair
مشخصات:
For moderate distance conveying applications, nothing beats the simplicity of a regenerative vacuum pump from Conair. Replacing larger, more complex positive displacement pump/motor units, RG Series Pumps utilize a one piece fan/motor unit to produce reliable vacuum power for loading systems up to 450 feet {137 m} and 7000 lbs/hr {3175 kg/hr}.
The simple, compact design allows the pump to be installed in nearly any indoor location, it can even be wall-mounted. Because the operating sound level is very low, con
Requires no maintenance
The pumps are permanently lubricated to reduce downtime.
Quiet operation
Requires no soundproofing.
Reliable components
RG Series Pumps include a vacuum relief valve, vacuum gauge, magnetic starter and overload protection.
Options
IDLE MODE VALVE AND TIMER
This option eliminates frequent starting and stopping of the pump motor.
FILTER CANISTER
The filter canister provides simplified dust collection for virgin material systems.
توضیحات:
Lubrication
lubricated
Number of stages
single-stage
Applications
for the plastics industry, regenerative
Other characteristics
compact, low-noise level, direct-drive, pneumatic
Flow rate
Max.: 226 ft³/min(6.4 m³/min)Min.: 57 ft³/min(1.61 m³/min)
Power
Max.: 12.6 kW(17.13 hp)Min.: 2.6 kW(3.54 hp)
Width
Max.: 36 inMin.: 22 in
Height
Max.: 25 inMin.: 14 in
Weight
Max.: 214 kg(471.79 lb)Min.: 27 kg(59.52 lb)
