نام محصول:
پمپ خلاء روتاری

نام انگلیسی:

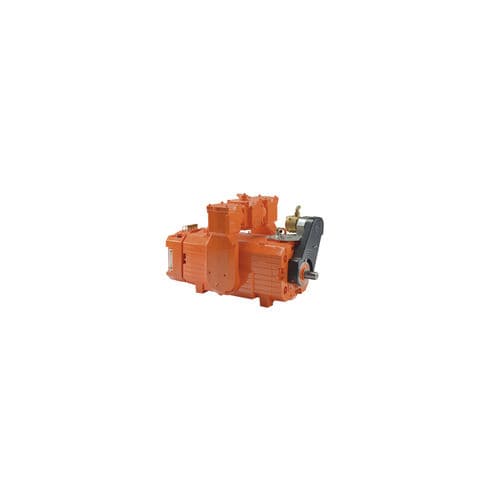

Rotary vane vacuum pump STORM

برند:
KAISER AG Fahrzeugwerk

مشخصات:
The New STORM series liquid cooled vaccum pumps represent the most elevated standard in the technology of the vacuum suction and they are studied on purpose for an employment in industrial sector. The applied technology is the one of the radial rotary vanes pump. The STORM range is currently constituted by various pumps models, with different air courses, for which there are several versions available in accordance of the required capacity. The pump’s body, realized in high-resistant cast iron, has been projected to guarantee the maximum lasting reliability and to favor the heat exchange.

The air inlet and outlet ports have been studied to reduce both noise and heat produced. The increase of heat exchange has been granted by the introduction of a liquid-cooling circuit, which improves the time of the pump use. The vacuum pump is standard fitted with a water-recirculating pump. The correct operation of the vacuum pump is insured by the forced lubrication with piston pump. The oil tank is incorporated. The vanes are of a high-heat-resistant composite material. A special inspection hole in the flanges allows the visual check of their wear. The non-return valve and the 4-ways valve are integrated in the pump.

Hydraulic or pneumatic actuator change over type for the 4-way valve.

Every pump model is available in different versions:

For pulley transmission at 1.000 / 1.200 rpm

For hydraulic transmission

For direct transmission by cardan shaft at 1.000/1.200 rpm

توضیحات:
Technology
rotary vane, piston

Lubrication
lubricated

Number of stages
single-stage

Applications
suction, liquids

Other characteristics
high-performance, cast iron, pneumatic

Flow rate
Max.: 1,700 m³/h(60,034.93 ft³/h)Min.: 930 m³/h(32,842.64 ft³/h)
