نام محصول:

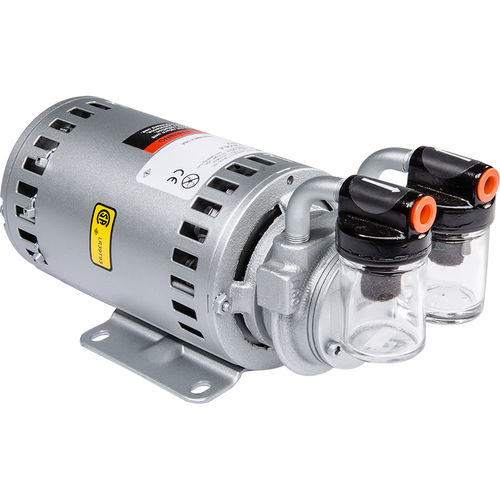

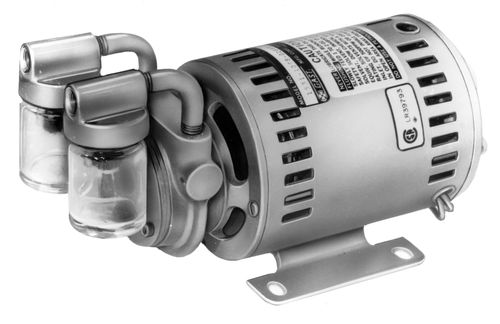

پمپ خلاء روتاری
نام انگلیسی:
Rotary vane vacuum pump 1531 series
برند:
GAST
مشخصات:
Power 1/10 hp ( 0.07 kW )
Max Flow (50 Hz) 1.2 cfm ( 2.1 m3/h )
Max Flow (60 Hz) 1.5 cfm ( 2.5 m3/h )
Max Pressure (50 Hz) 15 psi ( 1 bar )
Max Pressure (60 Hz) 15 psi ( 1.0 bar )
Max Vacuum (60 Hz) 20.0 in-Hg ( 335.0 mbar abs )
Weight 7 lbs ( 3 kg )
Min Temperature 33.8 °F ( 1 °C )
Max Temperature 104 °F ( 40 °C )
Product Details
The easy to install, rugged 1531 Series offers oil-less operation to ensure the discharge air remains free of contamination from lubricants. They produce minimal noise or vibrations, which makes them well suited for noise sensitive environments like medical, dental and laboratory applications. In addition, these compact units offer high flow, pulse free air– making them ideal for applications requiring consistent air pressure and air flow.
Thermal Protection
The thermal over load protection protects motor windings from damage should the pump become stalled during operation. (AC models)
Low Maintenance
Vanes and filters are easily serviceable to extend the life of the product and maximize uptime.
توضیحات:
Technology
rotary vane
Lubrication
oil-free
Number of stages
single-stage
Applications
for laboratories, for medical applications
Other characteristics
compact, high-flow, air compressor
Ultimate vacuum
Min.: 0 mbar(0 psi)Max.: 335 mbar(4.86 psi)
Flow rate
2.1 m³/h, 2.5 m³/h(74.16 ft³/h, 88.29 ft³/h)
