نام محصول:
پمپ خلاء روتاری

نام انگلیسی:

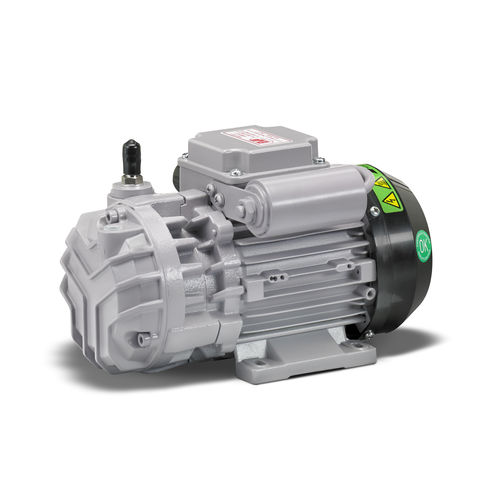

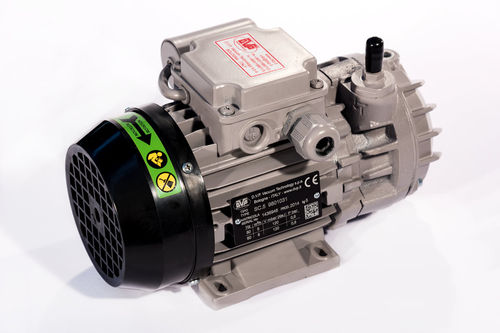

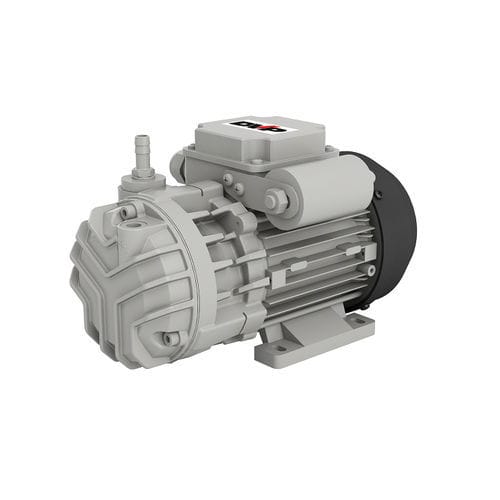

Rotary vane vacuum pump SC.5

برند:
DVP Vacuum Technology

مشخصات:
Oil-free rotary vane vacuum pumps SC 5 has been developed for use for those industrial applications that require an oil -free operation in a restricted but sufficiently ventilated space. The SC 5 pump includes the FKM gasket positioned to assure a hermetic seal and a long operating time.

The SC 5 pump is equipped with:

• Non-return valve at the inlet

• Silencer at the outlet

• Rotor and pump body NPO treated to withstand oxidation

Main application fields:

machines for pressotherapy, machines for dermabrasion, inhalation thermal therapies, money counting machines, silk screen printing machines, automatic feeder machines for book-binding, wood presses, suction lifting machines, pollutant sampling and analysis.

توضیحات:
Technology
rotary vane

Lubrication
oil-free

Number of stages
single-stage

Applications
suction

Ultimate vacuum
120 mbar(1.74 psi)

Flow rate
5 m³/h, 6 m³/h(176.57 ft³/h, 211.89 ft³/h)

Power
0.12 kW, 0.15 kW(0.16 hp, 0.2 hp)

Operating temperature
Max.: 75 °C(167 °F)Min.: -20 °C(-4 °F)

Length
226 mm(9 in)

Width
139 mm(5.47 in)

Height
138 mm(5.43 in)

Noise level
Max.: 64 dBMin.: 59 dB
