نام محصول:
پمپ خلاء روتاری
نام انگلیسی:

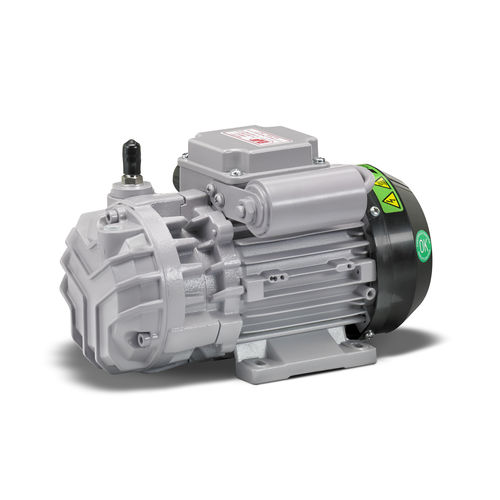

Rotary vane vacuum pump SC.5
برند:
DVP Vacuum Technology
مشخصات:
Oil-free rotary vane vacuum pumps SC 5 has been developed for use for those industrial applications that require an oil -free operation in a restricted but sufficiently ventilated space. The SC 5 pump includes the FKM gasket positioned to assure a hermetic seal and a long operating time.
The SC 5 pump is equipped with:
• Non-return valve at the inlet
• Silencer at the outlet
• Rotor and pump body NPO treated to withstand oxidation
Main application fields:
machines for pressotherapy, machines for dermabrasion, inhalation thermal therapies, money counting machines, silk screen printing machines, automatic feeder machines for book-binding, wood presses, suction lifting machines, pollutant sampling and analysis.
توضیحات:
Technology
rotary vane
Lubrication
oil-free
Number of stages
single-stage
Applications
suction
Ultimate vacuum
120 mbar(1.74 psi)
Flow rate
5 m³/h, 6 m³/h(176.57 ft³/h, 211.89 ft³/h)
Power
0.12 kW, 0.15 kW(0.16 hp, 0.2 hp)
Operating temperature
Max.: 75 °C(167 °F)Min.: -20 °C(-4 °F)
Length
226 mm(9 in)
Width
139 mm(5.47 in)
Height
138 mm(5.43 in)
Noise level
Max.: 64 dBMin.: 59 dB
Weight
5.4 kg(11.9 lb)
