نام محصول:
پمپ خلاء روتاری
نام انگلیسی:

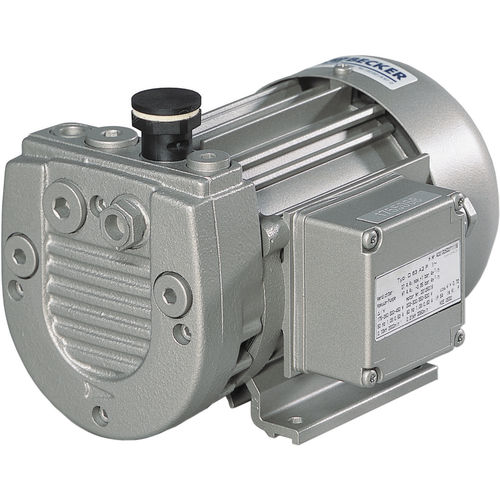

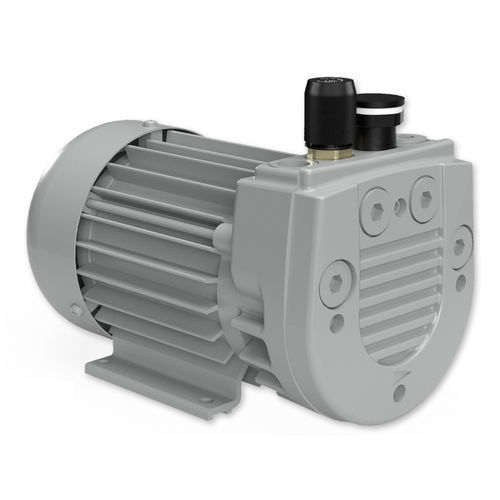

Rotary vane vacuum pump VT 4.4
برند:
BECKER
مشخصات:
Rotary vane vacuum pumps, oil-free
The VT 4.4 is a medium vacuum, dry-running displacement pump designed to operate on a continuous duty basis. It utilises self-lubricating, graphite composite vanes, requires only minimal maintenance, and requires no oil change.
100% dry-running (oil-less) operation
Long vane life
Continuous duty rated
Features
100% dry-running (oil-less) operation
Quiet operation
Long vane life
Continuous duty rated
Air-cooled
Single shaft direct drive
Compact design
Variety of motors available
Benefits
Low operation and maintenance costs
No cycling times
Quiet operation – no silencer enclosures necessary
Small footprint for space savings
Straightforward construction for fast and easy service on-site to reduce downtime
توضیحات:
Technology
rotary vane
Lubrication
oil-free
Supply voltage
24 Vdc, 230VAC, 220VAC, 380VAC, 460 VAC
Number of stages
single-stage
Other characteristics
compact, small, air-cooled, direct-drive
Ultimate vacuum
150 mbar(2.18 psi)
Flow rate
4.1 m³/h, 4.7 m³/h(144.79 ft³/h, 165.98 ft³/h)
Power
0.18 kW, 0.21 kW(0.24 hp, 0.29 hp)
Length
222 mm(9 in)
Height
165.5 mm(6.52 in)
Noise level
59 dB, 61 dB
Weight
7 kg(15.43 lb)
