نام محصول:
پمپ خلاء دیافراگم
نام انگلیسی:

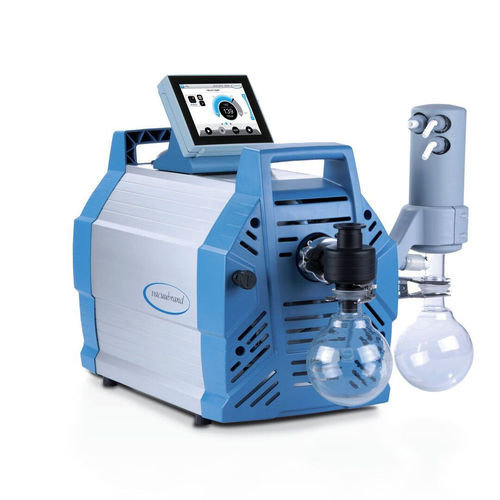

Diaphragm vacuum pump PC 3012 NT VARIO select
برند:
VACUUBRAND
مشخصات:
The PC 3012 VARIO select pumping unit precisely controls the vacuum level in order to achieve unparalleled process control. With its combination of high pumping speed and deep ultimate vacuum, this pump is suitable for demanding applications with even high boiling point solvents. This pump is regularly used to support floor-standing rotary evaporators, vacuum drying ovens, distillation columns, and other similar work in miniplants, kilo labs, and scale-up facilities. The integrated VACUU·SELECT controller provides an easy-to-use, application based interface that covers all common lab applications. The VACUU·SELECT controller has you covered. Use manual set-point-control for simple processes, run fully automated distillations, or create your own application with simple drag-and-drop editing. For solvent evaporation, the VACUU·SELECT controller continuously detects the boiling point and automatically adjusts the vacuum process as necessary.
In addition, the VARIO control maintains the desired vacuum level by running the motor only as fast as necessary. This prevents bumping and foaming, makes the pump whisper quiet, and extends maintenance intervals. The inlet separator, made of glass with a robust protective coating, prevents particles and liquid droplets from entering the pump, preventing damage and extending pump life. And the exhaust vapor condenser allows for nearly complete recovery of solvents when used with a chilled water line or recirculating chiller for economical recycling and environmental protection.
Performance features
VACUU·SELECT vacuum controller with graphical user interface and predefined applications simplifies work in the laboratory
توضیحات:
Technology
diaphragm
Lubrication
dry
Supply voltage
230VAC
Number of stages
three-stage
Applications
for laboratories, chemical process
Other characteristics
chemical-resistant
Ultimate vacuum
1.5 mbar, 3 mbar(0.02 psi, 0.04 psi)
Flow rate
14.3 m³/h(505 ft³/h)
Power
530 W(0.72 hp)
Operating temperature
Max.: 60 °C(140 °F)Min.: -10 °C(14 °F)
Length
616 mm(24 in)
Width
387 mm(15.24 in)
Height
450 mm(17.72 in)
Noise level
47 dB
Weight
29.7 kg(65.48 lb)
