نام محصول:
پمپ خلاء دیافراگم
نام انگلیسی:

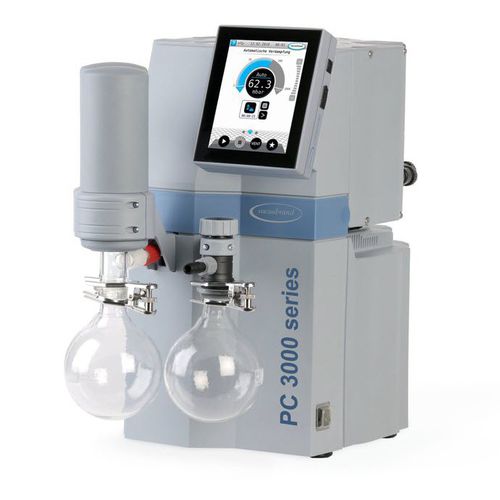

Diaphragm vacuum pump PC 3003 VARIO select
برند:
VACUUBRAND
مشخصات:
The PC 3003 VARIO select pumping unit precisely controls the vacuum level in order to achieve unparalleled process control. With its high pumping speed and deep ultimate vacuum, this pump is suitable for demanding applications with high boiling point solvents in low temperature conditions. The integrated VACUU·SELECT controller provides an easy-to-use, application based interface that covers all common lab applications. The VACUU·SELECT controller has you covered. Use manual set-point-control for simple processes, run fully automated distillations, or create your own application with simple drag-and-drop editing. For solvent evaporation, the VACUU·SELECT controller continuously detects the boiling point and automatically adjusts the vacuum process as necessary.
And the VARIO control algorithm maintains the desired vacuum level without running the motor faster than necessary. This prevents bumping and foaming, makes the pump whisper quiet, and extends maintenance intervals. The inlet separator, made of glass with a robust protective coating, prevents particles and liquid droplets from entering the pump, preventing damage and extending pump life. And the exhaust vapor condenser allows for nearly complete recovery of solvents when used with a chilled water line or recirculating chiller for economical recycling and environmental protection.
Performance features
VACUU·SELECT vacuum controller with graphical user interface and predefined applications simplifies work in the laboratory
automatic boiling point detection and adjustment of the vacuum for short process times
ideal for evaporation of high-boiling solvents even at low temperatures
توضیحات:
Technology
diaphragm
Lubrication
dry
Supply voltage
230VAC, 220VAC
Number of stages
four-stage
Applications
for laboratories, chemical process
Other characteristics
chemical-resistant
Ultimate vacuum
0.6 mbar, 1.5 mbar(0.01 psi, 0.02 psi)
Flow rate
2.8 m³/h(98.88 ft³/h)
Power
0.53 kW(0.72 hp)
Operating temperature
Min.: -10 °C(14 °F)Max.: 60 °C(140 °F)
Length
419 mm(16 in)
Width
243 mm(9.57 in)
Height
457 mm(17.99 in)
Noise level
43 dB
Weight
21.1 kg(46.52 lb)
