نام محصول:
پمپ خلاء دیافراگم
نام انگلیسی:

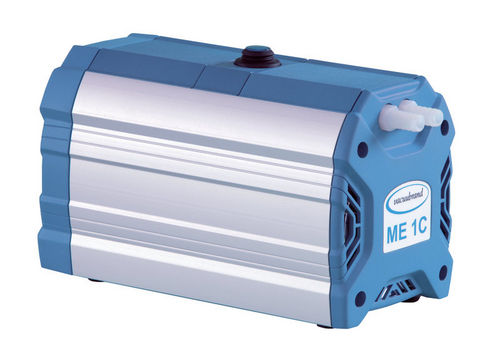

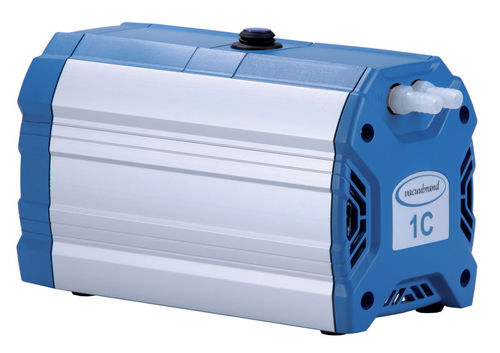

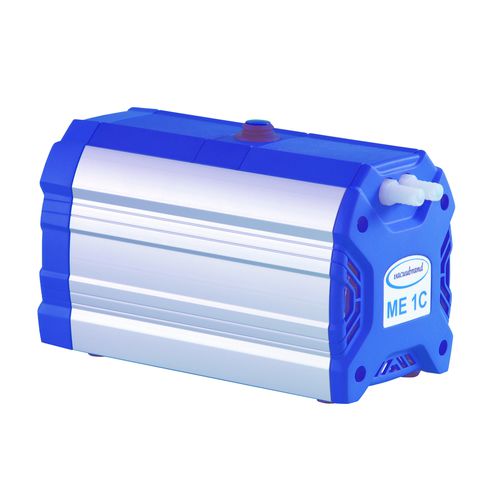

Diaphragm vacuum pump ME 1C
برند:
VACUUBRAND
مشخصات:
Vacuum filtration is one of the most common applications used for sample preparation in chemistry, microbiology, waste water control and other analytical processes. The ME 1C diaphragm pump offers a compact, high performance and easy-to-use solution which is perfect for single filtrations. This development, based on the highly successful technology of the oil-free diaphragm pump MD 1C, provides a well-proven and extraordinarily long diaphragm life time. The functional, space saving and innovative design with easily accessible, top-mounted power switch ensures convenient and quick operation for day-to-day lab work. Robust PTFE diaphragms and valves provide optimal chemical resistance. A manual vacuum regulator valve with dial gauge for adjustment of pumping speed and ultimate vacuum is available as accessory.one-stage diaphragm pumps are an excellent solution for continuous, oil-free pumping of gases and vapors with a modest vacuum requirement. In contrast to water-jet pumps they do not consume water and therefore do not produce any contaminated waste water in daily use.
Performance features
convenient, quick and simple to use due to the new top-mounted power switch
whisper quiet and very low vibration
requires minimal benchtop space
maintenance-free drive system and proven long diaphragm life
high chemical resistance
توضیحات:
Technology
diaphragm
Lubrication
oil-free
Supply voltage
230VAC, 220VAC
Number of stages
single-stage
Applications
for laboratories, for the chemical industry, for water, chemical process
Other characteristics
compact, small, low-noise level, chemical-resistant, portable
Ultimate vacuum
100 mbar(1.45 psi)
Flow rate
0.7 m³/h, 0.85 m³/h(24.72 ft³/h, 30.02 ft³/h)
Power
0.04 kW(0.05 hp)
Operating temperature
Max.: 60 °C(140 °F)Min.: -10 °C(14 °F)
Length
247 mm(10 in)
Width
121 mm(4.76 in)
Height
145 mm(5.71 in)
Noise level
45 dB
Weight
5 kg(11.02 lb)
