نام محصول:
پمپ خلاء دیافراگم
نام انگلیسی:

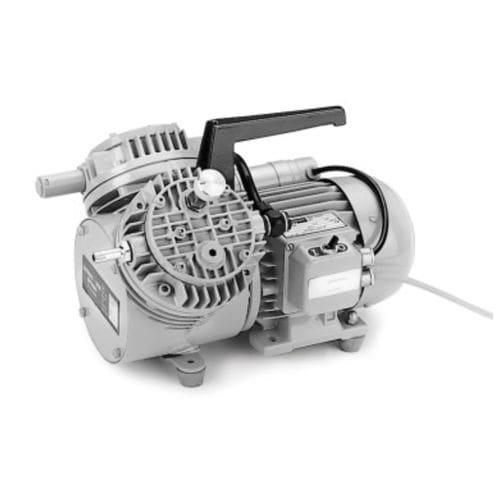

Diaphragm vacuum pump Microsart® e.jet
برند:
Sartorius AG
مشخصات:
Maintenance-friendly and performant pumps for smooth and reliable filtration. A complete product range for one to 6-branch filtration systems. Sartorius pumps use state of the art technology making robustness one of their best features. Whether you would like to use a vacuum flask or prefer a flask-free solution (Microsart® e.jet), Sartorius pumps will answer all your needs and help you save space without compromising on performance.
The Microsart® e.jet vacuum laboratory pump is designed to create sufficient vacuum for filtration and unlike traditional vacuum pumps, it allows simultaneous transfer of the filtered liquid to waste. The Microsart® e.jet Transfer Pump is ideal for sample filtration in Microbiology achieving a trans membrane pressure below 700 mbar in compliance with ISO 8199 (Water quality – General guidance on the enumeration of micro-organisms by culture). Constant flow rates and a defined maximum vacuum guarantee smooth and reliable filtration. The Microsart® e.jet Transfer Pump greatly reduces operating complexity and is an ideal accessory for 3-branch and 1-branch manifolds. The Microsart® e.jet is designed to pump both gas and liquids, meaning no loss of efficiency or malfunctions from water drawn into the pump head.
The vacuum pump series Microsart® maxi.vac and Microsart® mini.vac provide up to date technology for daily use in the Microbiology laboratory environment. They are electric neoprene membrane pumps and therefore oil- and maintenance-free with a low noise level. The vacuum produced by these pumps is controlled and can be easily adjusted to your specifications.
توضیحات:
Technology
diaphragm
Lubrication
oil-free
Supply voltage
220VAC, 110VAC, 230VAC, 115VAC
Number of stages
single-stage
Applications
for food, for pharmaceutical applications, liquids
Other characteristics
mini
Ultimate vacuum
13 mbar(0.19 psi)
Flow rate
26 l/min(6.87 us gal/min)
Power
120 kW(163.15 hp)
Operating temperature
Max.: 40 °C(104 °F)Min.: 5 °C(41 °F)
Length
225 mm(9 in)
Width
338 mm(13.31 in)
Height
250 mm(9.84 in)
