نام محصول:
پمپ خلاء دیافراگم
نام انگلیسی:

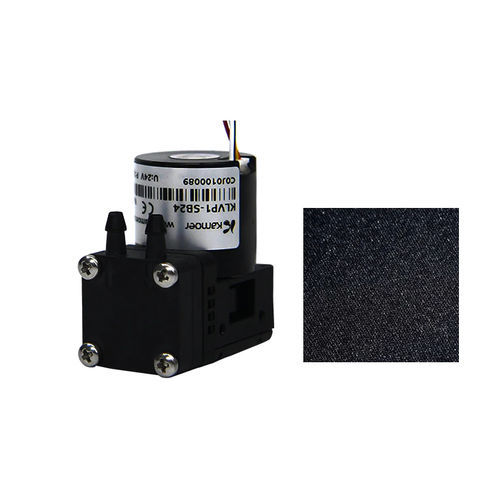

Diaphragm vacuum pump KLVP1 series
برند:
Kamoer Fluid Tech (Shanghai) Co.,LTD.
مشخصات:
KLVP1 series diaphragm air pumps are available in 24V and 12V voltages
The appearance of the product is personally checked by the design master, and it is beautiful and generous
Oil-free, maintenance-free, 24h uninterrupted work
Motors are optional, either cost-advantaged brushed motors or performance-advantaged brushless motors
Low noise, low power design
High-quality engineering plastics and rubber materials, showing good product stability
Applications
Environmental protection industry: such as use as a gas pump for gas monitoring
Medical equipment: such as used as an air pump for a rehabilitation instrument
Industrial automation: as a negative pressure pump for suction cups
White goods: such as use as a negative pressure pump for a massager
★ High-quality engineering plastics, stable and reliable ★ EPDM diaphragm & valve disc ★ Simple design, beautiful and generous ★ High performance, brushless motor, Surging power, enduring
Basic Parameters
Voltage: 12V/24V Motor: Brushless motor Power: 2W Fluid medium: Air, general gas Air flow: 1-1.5L/min Positive pressure: 0.08Mpa Negative pressure: 0.05Mpa Diaphragm material: EPDM & valve disc Lifetime: 6000H Working temperature: 0~40℃ Humidity: Less than 60%(no condensation water) Noise: 60dB Number of pump head: Single head
Various Applications
# Laboratory # Gas Analysis # Automated Industry # Environmental monitoring Note: This pump is suitable for many technical fields, especially the field of gas detection.
Packing List
1 × KLVP1(12V/24V).
Precatution
Please use pre-filtering, after the pump sucks in excessive dust, the parameters will drop significantly.
توضیحات:
Technology
diaphragm
Lubrication
oil-free
Supply voltage
12VAC, 24VAC
Number of stages
single-stage
Applications
gas, water, motor
Ultimate vacuum
Max.: 0.1 MPaMin.: -0.07 MPa
Flow rate
1 l/min, 1.5 l/min(0.26 us gal/min, 0.4 us gal/min)
Power
2 W(0 hp)
Operating temperature
Max.: 40 °C(104 °F)Min.: 0 °C(32 °F)
Noise level
60 dB, 68 dB
