نام محصول:
پمپ خلاء دیافراگم
نام انگلیسی:
Diaphragm vacuum pump EDZP2
برند:
Kamoer Fluid Tech (Shanghai) Co.,LTD.
مشخصات:
★ Super mini ★ Long life ★ High precision ★ Fast pressurization ★ Powerful and low noise ★ Low power consumption ★ Micro pump for sphygmomanometer
Basic Parameters
Voltage: 3 V Motor: Brush motor Noise: less than 55 dB Pressure Max: 350 mmHg Environment temperature range: 5~45℃ Ambient humidity range: 30%~85%
▲ Designed specifically for blood pressure monitors.
Packing List
1 × pump.

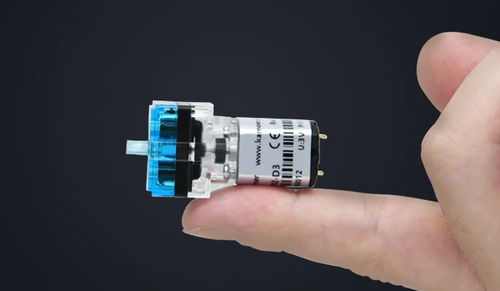

▲ Small size: 4.3 cm×2.1 cm×1.2 cm ▲ Large capacity 1. Under the condition of rated voltage DC 6V, it takes about 10 seconds to increase the pressure in a 100cc container from 0 to 300mmHg. 2. The allowable voltage range is DC 2.0V-DC 3.0V. 3. The allowable temperature range is 5℃-45℃; the humidity range is 30%RH-85%RH. When the rated voltage is used and the pressure reaches 300mmHg, the basic performance of the air pump will not be affected. 4. Under the condition of rated voltage DC 3V, the current consumed when the pressure rises from 0 to 300mmHg is 450Ma. 5. Connect the air outlet of the pump to the test device through the pump tube, and place a noise meter at a distance of 30 cm from the pump. Then under the rated voltage (DC 3V), when the pressure rises from 0 to 300mmHg, the measured noise value is: 55Db. The pump should be placed on a 5cm thick foam board during the noise test.
Noise ≤ 55 dB
▲ High quality DC motor After 3000 cycles of operation, the power is still excellent and the basic performance is not affected. The above data are from Kamoer laboratory.
توضیحات:
Technology
diaphragm
Lubrication
lubricated
Supply voltage
12 Vdc, 24 Vdc
Number of stages
single-stage
Applications
precision, motor
Other characteristics
small, mini, micro, large
Ultimate vacuum
Max.: 0.04 MPaMin.: 0 MPa
Operating temperature
Max.: 45 °C(113 °F)Min.: 5 °C(41 °F)
Length
4 cm(2 in)
Width
2.1 cm(0.83 in)
Height
1 cm(0.39 in)
Noise level
55 dB
