نام محصول:
پمپ خلاء دیافراگم
نام انگلیسی:

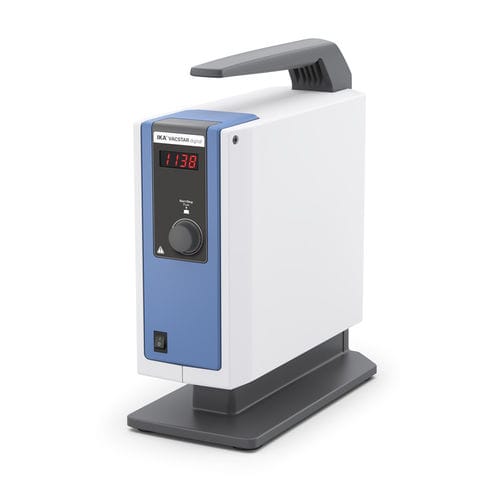

Diaphragm vacuum pump VACSTAR digital
برند:
IKA
مشخصات:
The four-chamber membrane vacuum pump convinces with its high suction capacity, low space requirement and high serviceability. The setting of the parameters is carried out through a rotary-push button over a digital display showing current rpm.

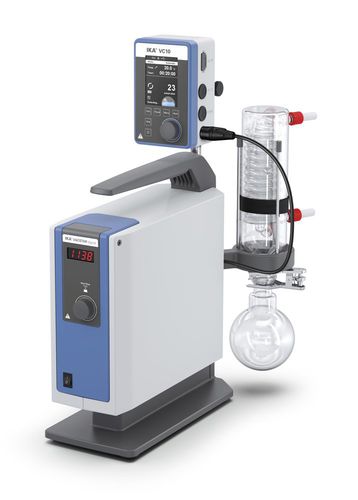

Automated processes are controlled with the vacuum controller VC 10, which is available as an accessory. An analogue cable which is required for connecting pump and controller is included in the delivery of the pump. Additionally it is recommended to use the VSE 1 vacuum safety emmission. It prevents that solvents are released into ambient air.
The Vacstar digital is used for dry and oil-free applications in the laboratory. The membranes of the pump are particularly chemical resistant.
Scope of delivery
• Vacuum hose (1 m)
• Silencer
• USB A-B Cable
• connecting cable
توضیحات:
Technology
diaphragm
Lubrication
oil-free
Supply voltage
110VAC, 240 VAC
Number of stages
four-stage
Applications
suction
Other characteristics
small, chemical-resistant
Ultimate vacuum
Max.: 1,030 mbar(14.94 psi)Min.: 2 mbar(0.03 psi)
Flow rate
Max.: 1.32 m³/h(5.81 ft³/h)Min.: 1.32 m³/h(46.62 ft³/h)
Power
130 W(0.18 hp)
Operating temperature
Max.: 40 °C(104 °F)Min.: 5 °C(41 °F)
Length
370 mm(15 in)
Width
150 mm(5.91 in)
Height
375 mm(14.76 in)
Noise level
54 dB
Weight
11.5 kg(25.35 lb)
