نام محصول:
پمپ خلاء دیافراگم
نام انگلیسی:
Diaphragm vacuum pump VACSTAR control
برند:
IKA
مشخصات:

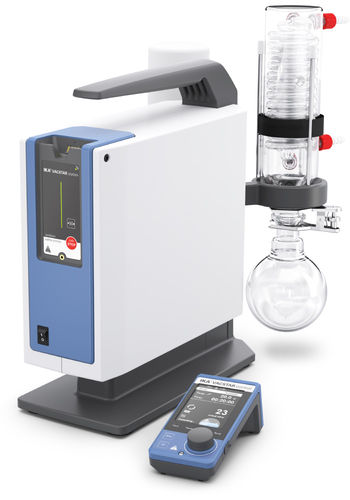

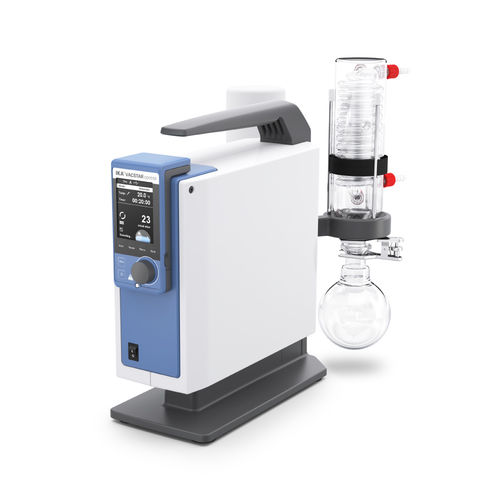

Separation, filtration, removal: The VACSTAR dry 4-chamber membrane vacuum pump is powerful, resistant to chemicals and low-maintenance. VACSTAR control is the ideal system with its integrated vacuum controller and removable display. The controller offers a suitable mode for the desired process: from automatic to manual operation, right through to pumping or an evacuation and cleaning function.
High-performance suction
VACSTAR has an excellent suction performance, with its 22 l/min at a minimum of 2 mbar.
Integrated vacuum controller with removable controller (WiCo)
Depending on the application, you can easily select your operating mode either by using the intuitive operator menu or by remote control.
For additional safety for users and environment, we recommend using the VSE 1 vacuum safety emission condenser, which prevents solvents from being released into the room air. The VSE 1 is available as accessory.
Scope of delivery
• WiCo VACSTAR control
• Vacuum hose (1 m)
• WH11
• OS 1.0 WiCo power supply unit
• USB Cable – USB A to Micro-B, 2 m
• USB A-B Cable
• Screw driver
توضیحات:
Technology
diaphragm
Lubrication
oil-free
Number of stages
single-stage
Other characteristics
high-performance, chemical-resistant
Ultimate vacuum
Max.: 1,030 mbar(14.94 psi)Min.: 1 mbar(0.01 psi)
Flow rate
22 l/min(5.81 us gal/min)
Power
140 W(0.19 hp)
Operating temperature
Max.: 40 °C(104 °F)Min.: 5 °C(41 °F)
Length
500 mm(20 in)
Width
270 mm(10.63 in)
Height
435 mm(17.13 in)
Noise level
54 dB
Weight
14 kg(30.86 lb)
