نام محصول:
پمپ خلاء دیافراگم
نام انگلیسی:
Diaphragm vacuum pump 5625 series
برند:
Bürkle
مشخصات:

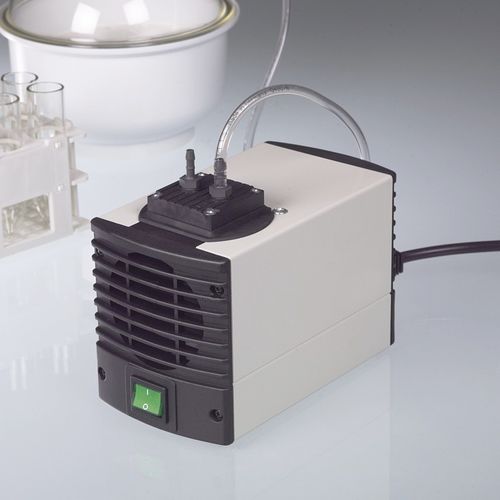

This 1-head dry-running membrane vacuum pump/compressor pump offers versatile use in science, industry and laboratories in instances where media needs to be transferred unaltered, evacuated or compressed. It is ideal for corrosive or slightly aggressive vapors and gases. The FKM membrane guarantees that the medium is not contaminated as it transfers 100% oil-free.
The maintenance-free vacuum pump/compressor pump can be mounted in any position and features a compressor head which is constructed from pressure cast zinc. It provides an ultimate vacuum of 75-80% and maximum working pressure of 2.5 bar. It operates at 230 V, 25 W and complies with protection code IP 21. It is supplied with a carrying handle and hoze nozzle for a 5-7mm i.d. hose.
توضیحات:
Technology
diaphragm
Lubrication
oil-free
Number of stages
single-stage
Applications
for laboratories, for the chemical industry
Other characteristics
compact, low-noise level
Ultimate vacuum
1 mbar(0.01 psi)Min.: 100 mbar(1.45 psi)
Flow rate
Max.: 6 l/min(1.59 us gal/min)16.67 l/min(35.31 us gal/min)
Noise level
Max.: 55 dB1 dBMin.: 50 dB
