نام محصول:
پمپ خلاء حلقه مایع
نام انگلیسی:
Liquid ring vacuum pump Vectra SX series
برند:
Nash
مشخصات:

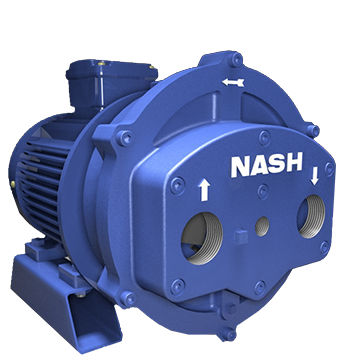

The NASH Vectra SX liquid ring vacuum pump and compressor series delivers optimum performance with unprecedented production efficiencies. Available in 5 models, the capacities of the Vectra SX liquid ring vacuum pumps and compressors range from 25 to 260 m3/h (15 to 150 ACFM) , and have been designed to meet the widespread needs of the process industry.
Key characteristics:
• Low total cost
• 2in1: pump & compressor
• Reliable and efficient
• Demanding environments
Small Industrial Pumps Engineered For Process Industry Applications
The Vectra SX line of small industrial pumps delivers proven Nash reliability and performance to a broad range of industrial applications. With five low horsepower liquid ring pump models in the 1.5 to 10 HP range at 60 Hz (0.75 to 5.5 kW at 50Hz), these pump/compressor models provide the right solution for small capacity vacuum pump requirements.

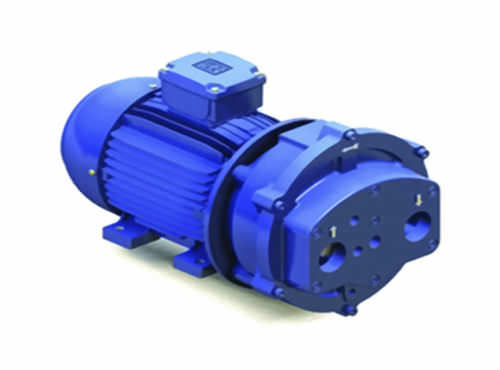

Available in monoblock and lantern pump designs, the Vectra SX compact liquid ring vacuum pump uses commercial motors for a wide range of product configurations.
Reliable And Efficient With Proven Performance
Based on proven reliable NASH conical liquid ring pump designs, the Vectra series delivers superior performance and reliability through several engineering upgrades.
Built-in mechanical seals eliminate shaft leakage
Quiet operation
NASH patented Gas Scavenging Technology dramatically improves pump performance at high vacuum levels
Low Lifecycle And Utility Costs
Vectra SX small liquid ring vacuum pumps were designed to deliver low life cycle and utility costs. Features include:
The pump body is engineered to reduce forces on the pump shaft
توضیحات:
Technology
liquid ring
Lubrication
lubricated
Number of stages
single-stage
Applications
gas
Other characteristics
compact, small, compressor, stainless steel, cast iron
Ultimate vacuum
Max.: 33 mbar(0.48 psi)Min.: 0 mbar(0 psi)
Flow rate
Max.: 260 m³/h(9,181.81 ft³/h)Min.: 25 m³/h(882.87 ft³/h)
Power
Max.: 5.5 kW(7.48 hp)Min.: 0.8 kW(1.09 hp)
