نام محصول:
پمپ حلال
نام انگلیسی:

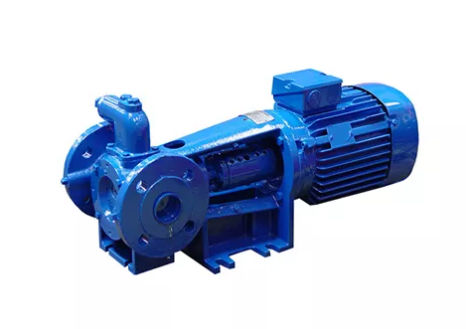

Solvent pump ROTAN® GP
برند:
DESMI Pumping Technology A/S
مشخصات:
Simple and compact construction for non-abrasive liquids
General Purpose Internal gear pumps in cast iron, for clean, non-abrasive liquids. The simple and compact construction makes it a low-cost pump, often used in modified versions by OEM customers.
A close-coupled OEM model is also available. GP pumps are designed for use with IEC or NEMA flange motors.
Pumping of:
• Clean oil
• Glycol
• Vegetable oil
• Solvents
• Lube oil
• Waste oil
• Fish oil
Key features and benefits:
• Flexible sealing options
• Opposing inlet and outlet connections with oversized ports
• Shaft supported by two ball bearings in single sealed configuration
• Self-priming with large suction capabilities
• Low NPSH requirements
• Self-draining, integral safety relief valve
• No speed reduction required in six smaller sizes
• Complete heating/cooling jacketing available
توضیحات:
Fluid
for solvents, oil
Operation
with electric motor
Priming
self-priming
Technology
internal-gear
Mobility
stationary
Domain
industrial
Applications
cooling, outlet
Material
cast iron
Other characteristics
compact, suction, flange, large, close-coupled, OEM, heating
Flow
50 m³/h(1,765.73334 ft³/h)
Pressure
0.5 bar, 0.8 bar, 16 bar(7.252 psi, 11.603 psi, 232.06 psi)
Fluid temperature
150 °C(302 °F)
