نام محصول:
پمپ حفره ای پیشرونده 797PCP-2K

نام انگلیسی:
Progressive cavity pump 797PCP-2K

برند:
Nordson Efd

مشخصات:
Fluid
for adhesives, for epoxy

Operation
electric

Technology
progressive cavity

Mobility
stationary

Domain
industrial, for the chemical industry, for the automotive industry

Applications
volumetric dispensing

Material
aluminum

Fluid specification
for 2-component resins

Other characteristics
modular

Flow
Min.: 0.0001 l/min
(0.00003 us gal/min)

Max.: 0.0245 l/min
(0.00647 us gal/min)

Fluid temperature
Min.: 10 °C
(50 °F)

Max.: 40 °C
(104 °F)

Input diameter
0.1 in

Weight
550 g, 620 g
(19.4 oz, 21.87 oz)

توضیحات:
Continuous volumetric meter mix dispensing for two-component (2K) fluids provides industry-leading process control for manufacturers.

Nordson EFD’s 797PCP-2K Series pumps precisely meter accurate ratios of part A and part B materials through static mixers for highly repeatable dispensing with fluid deposit accuracy at +/- 1%.

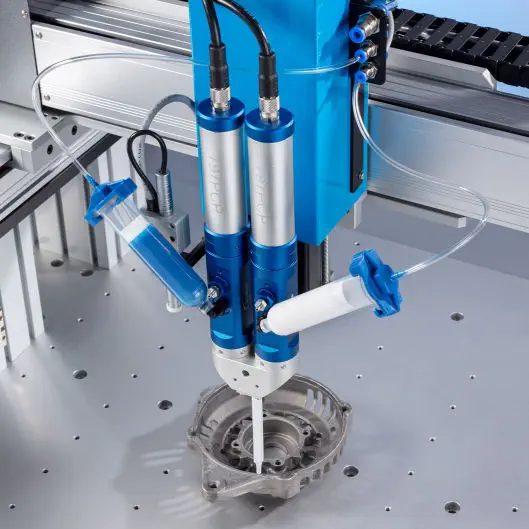

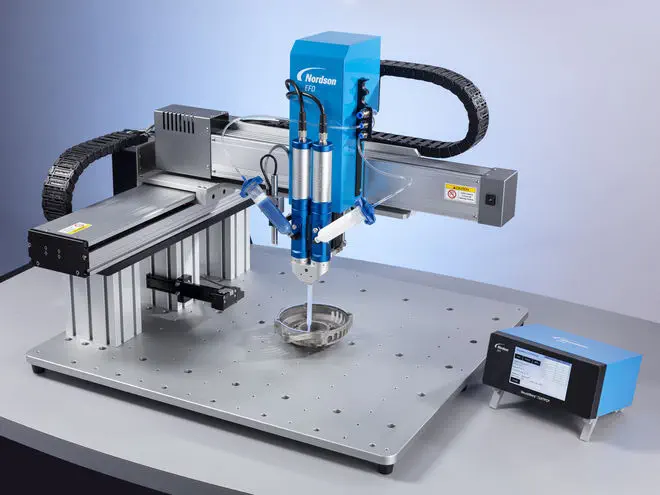

With a modular design that consists of two 797PCP-2K pumps and a manifold that accommodates a wide range of EFD’s disposable Series 190 spiral and Series 295 square Turbo mixers, Nordson EFD offers a total system solution backed by 50+ years of two-component fluid dispensing expertise.

This allows us to test your application in our global application labs and recommend the right two-component dispensing system, which can save time and costs when it comes to implementation.

797PCP-2K progressive cavity pumps come in three sizes – 0.01 mL, 0.05 mL, and 0.15 mL. This allows for multiple mix ratios for a wide range of applications.
Perfectly sealed metering chambers allow for continuous volumetric dispensing independent of fluid viscosity or changes in viscosity over time, making the pump system ideal for applying two-part epoxies. The continuous seal prevents shear, pulsation, and squeezing of fluid, which simplifies abrasive material dispensing.

Features and Benefits

•Highly precise, continuous volumetric dispensing with 2K fluid volume accuracy at +/- 1% for exceptional process control
•Modular design for multiple mix ratios and use in many different types of applications
•Compatibility with a wide range of EFD static mixers simplifies implementation
•Programmable suck-back provides more accurate dispensing without dripping or drooling
