نام محصول:
پمپ تولید مواد غذایی
نام انگلیسی:

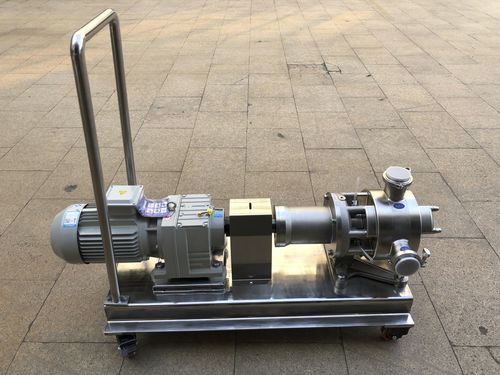

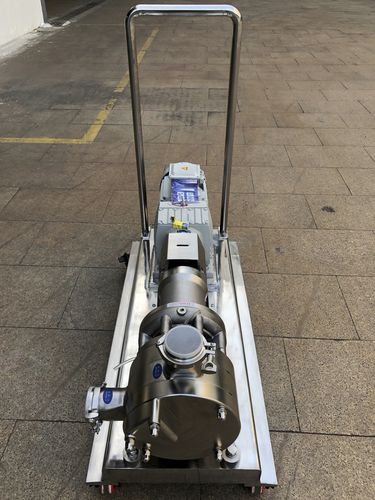

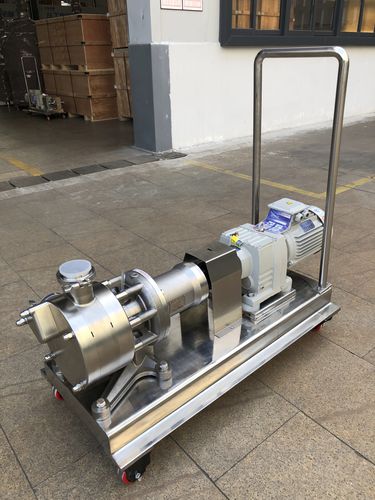

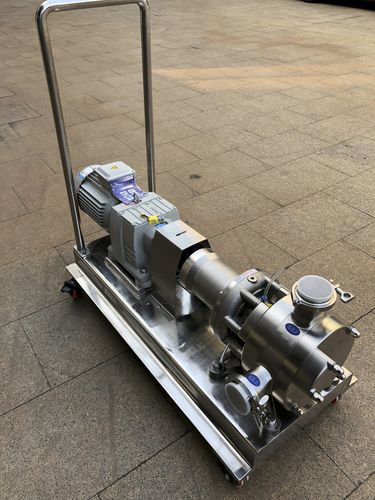

Food product pump TS-SP series
برند:
ZHEJIANG XINGSHENG MACHINERY CO.,LTD
مشخصات:
Sinusoidal pumps produced by Xingsheng Company have the following characteristics:
1. Triple Lip Shaft Seal
Low voltage application. Lip shaft seal is usually installed in a single shaft sleeve, without any damage on driving shaft.
2. Heating Or Cooling
Many products (for example: sugar manufacturing industry) need to be
heated or cooled. Pump house sleeve can be selected to connect with
hot water supply system safely and conveniently.
3. Driving Method In Special Application
As per different application, fixed or flexible rotation speed adjustment
method can be selected.
4. Single End Surface Or Double End Surface Mechanical Seals
The mechanical seal of sine pump conforms to food sanitary standard, ensures the cooling and sterilization are meeting the requirements of CIP (cleaning in place) and SIP (sterilization in
place). Meanwhile, all seal systems can be replaced conveniently.
5. Support Plate
With coupling protective device, made of stainless steel. The height of it can be adjusted or can be brought outdoor
6. Other Cleaning Function Can Be Added On Shaft Seal
For 3A standard pump, single level inner set mechanical seal is
taken to ensure cleaning, cooling and CIP cleaning and sterilization.
7.Cover :Applicable For Extreme Humid Conditions
Driving motor can be protected specially by a stable cover. An open ventilation hole can ensure the safety of cooling driving system.on pressure gauge.
توضیحات:
Fluid
for food products
Operation
electric
Technology
impeller
Mobility
stationary
Domain
industrial
Applications
extraction, control, adjustment
Material
stainless steel
Other characteristics
suction, flow, shear, sine wave
Flow
Max.: 30,000 l/h(7,925.16157 us gal/h)Min.: 180 l/h(47.55097 us gal/h)
Power
Max.: 15 kW(20.39 hp)Min.: 1.5 kW(2.04 hp)
