نام محصول:
پمپ تولید مواد غذایی
نام انگلیسی:

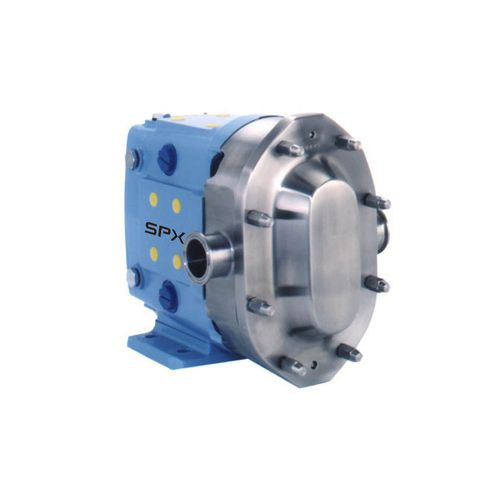

Food product pump Universal Lobe
برند:
Waukesha Cherry-Burrell
مشخصات:
Close coupled Tru-Fit® pump mounted on stainless steel base with stainless steel adaptors standard.
Features:
No shaft alignment necessary. No coupling guard required.
Special base design enhances cleanability.
Reduces overall length of complete unit by an average of 20-25%.
Average of 20-25 gear ratios available per horsepower.
Separate oil sump for gear reducer and timing gears.
Options:
304 SS polished plate base.
NEMA or IEC frames available. Right angle reducer also available for
additional space savings.
1/2 through 60 horsepower drive options available.
Horizontal or vertical porting.
توضیحات:
Fluid
for food products, oil
Operation
electric
Technology
gear
Mobility
stationary
Domain
industrial
Applications
drain, sump
Material
stainless steel
Fluid specification
for low-viscosity fluids
Other characteristics
mechanical, standard, vertical, bidirectional
Flow
Min.: 7.5 m³/h(264.86 ft³/h)Max.: 118.1 m³/h(4,170.66214 ft³/h)
Pressure
Min.: 200 psiMax.: 300 psi
Length
Min.: 314 mm(12 in)Max.: 703 mm(28 in)
Width
Min.: 177 mm(6.97 in)Max.: 406 mm(15.98 in)
Height
Min.: 211 mm(8.31 in)Max.: 568 mm(22.36 in)
Weight
Min.: 29.5 kg(65.04 lb)Max.: 406 kg(895.08 lb)
